Why Choose the ABB CL2-506C Compact Pilot Light?

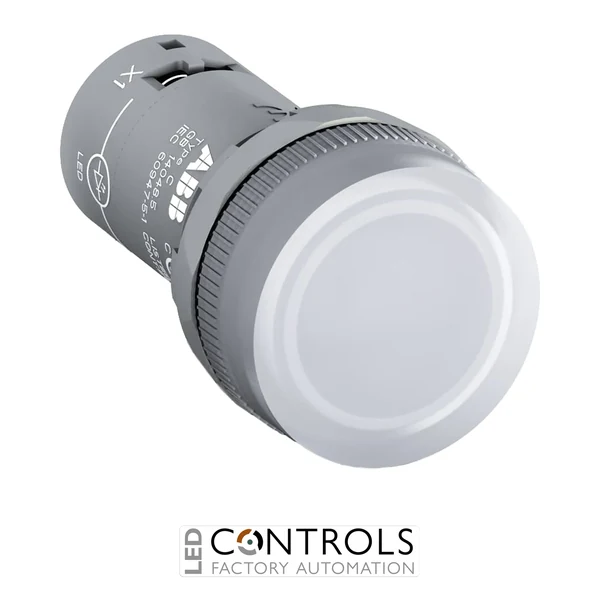

The ABB CL2-506C, order code 1SFA619403R5068, is a compact clear/white LED pilot light designed to provide bright visual status indication in industrial control panels, machinery and automation equipment. As part of the ABB Compact Pushbuttons range, it combines an integrated LED with a space-efficient design for dependable operator signalling and control applications.
Designed for a 6.3 V DC control supply, the CL2-506C provides clear illumination for machine status, process conditions and operator information. Its integrated LED eliminates the need for a separate bulb, helping simplify installation and maintenance while delivering efficient, reliable illumination.
The CL2-506C has a rated current of 16 mA, an anti-inductive voltage rating of 2 V peak and an illumination level of 290 lx. Its compact panel-mounted construction and robust front protection make it suitable for machinery, electrical control cabinets and industrial operator interfaces.
Key Advantages
- Compact LED pilot light designed for industrial control and signalling applications.
- 6.3 V DC rated operating voltage for low-voltage control circuits.
- Clear/white LED indication for bright machine and process status signalling.
- 16 mA rated current for efficient operation.
- Integrated LED design means no separate bulb is required.
- Robust front protection suitable for demanding industrial environments.
Key Features
- ABB Compact Pushbuttons CL2 series.
- Clear/white integrated LED pilot light.
- 6.3 V DC rated voltage.
- 16 mA rated current.
- 2 V peak anti-inductive voltage.
- 290 lx illumination.
- IP66, IP67 and IP69K front protection.
- Screw terminals for straightforward electrical connection.
Reliable Visual Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about machinery, processes and electrical control circuits. The ABB CL2-506C uses an integrated clear/white LED to provide bright indication while maintaining low current consumption in 6.3 V DC control systems.
The ABB Compact range is designed for industrial operator interfaces where dependable signalling, straightforward installation and efficient use of panel space are important. With robust front protection and an integrated LED light source, the CL2-506C can be incorporated into control panels, machinery and automation systems for reliable status and process indication.
Typical Applications
- Industrial machinery control panels.
- Automation and process control systems.
- Operator control stations and interfaces.
- Machine status and process indication.
- Electrical control cabinets and enclosures.
- OEM machinery and production equipment.
