Why Choose the ABB CL2-507R Compact Pilot Light?

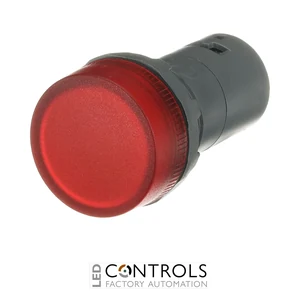

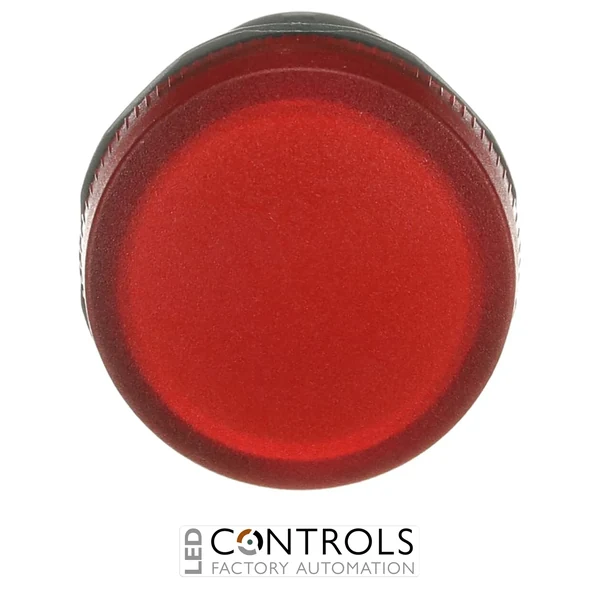

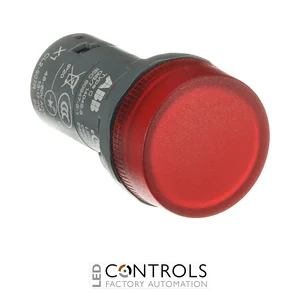

The ABB CL2-507R, order code 1SFA619403R5071, is a compact red LED pilot light designed for clear visual status indication in industrial control panels, machinery and automation systems. As part of the ABB Compact Pushbuttons range, it combines an integrated LED light source with a robust, space-efficient design for dependable operator signalling.
Designed for a 48–60 V AC/DC supply, the CL2-507R provides a highly visible red indication for machine status, alarms, warnings and process conditions. Its integrated LED eliminates the need for a separate lamp while providing efficient illumination and reliable operation in demanding industrial environments.
The CL2-507R operates at approximately 13–17 mA and uses a red LED with a nominal wavelength of 625 nm and illumination of approximately 75 lx. Its compact construction, screw-terminal connections and high front protection ratings make it suitable for industrial machinery, control cabinets and operator interfaces.
Key Advantages
- Compact LED pilot light designed for industrial control and signalling applications.
- 48–60 V AC/DC rated operating voltage provides flexibility for AC and DC control circuits.
- Highly visible red LED indication for machine status, alarms and process signalling.
- Integrated LED design eliminates the need for a separate lamp.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Part of the ABB Compact Pushbuttons range for space-efficient panel installation.
Key Features
- ABB Compact Pushbuttons CL2 series.
- Red integrated LED pilot light.
- 48–60 V AC/DC rated operating voltage.
- 13–17 mA operating current.
- 625 nm nominal LED wavelength.
- Approximately 75 lx illumination.
- 50/60 Hz rated supply frequency for AC operation.
- Screw terminals for straightforward electrical connection.
Reliable Visual Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about machinery, processes and electrical control circuits. The ABB CL2-507R uses an integrated red LED to provide clear indication for alarms, warnings and operating states while supporting both 48–60 V AC and DC control supplies.
The ABB Compact range is designed for industrial operator interfaces where dependable signalling, straightforward installation and efficient use of panel space are important. With robust front protection and an integrated LED light source, the CL2-507R can be incorporated into control panels, machinery and automation systems for reliable status and process indication.
Typical Applications
- Industrial machinery control panels.
- Automation and process control systems.
- Operator control stations and interfaces.
- Alarm, warning and machine status indication.
- Electrical control cabinets and enclosures.
- OEM machinery and production equipment.
