Why Choose the ABB CL2-507G Compact Pilot Light?

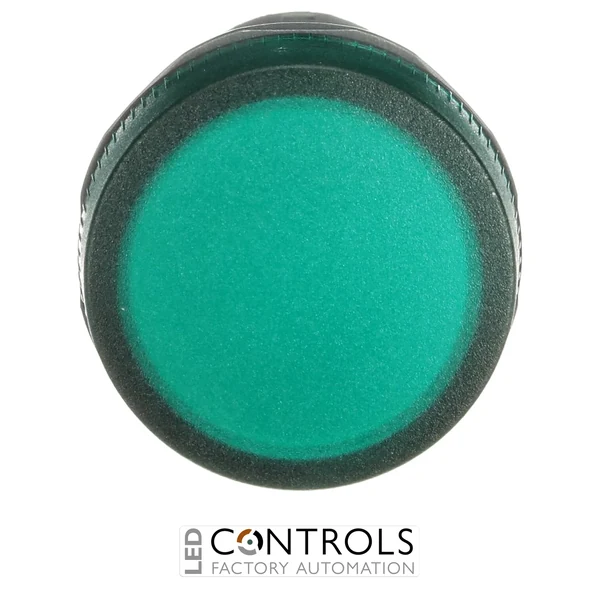

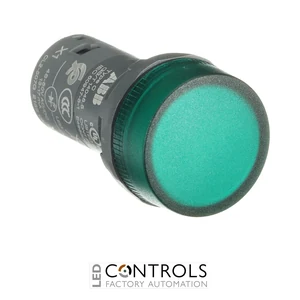

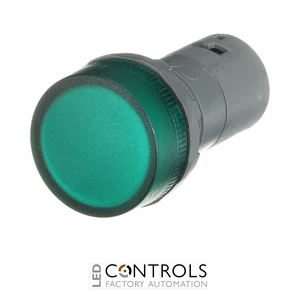

The ABB CL2-507G is a compact and reliable green LED pilot light designed for visual status indication in industrial control panels, machinery and automation systems. As part of the ABB CL2 Compact pilot device range, it provides an efficient all-in-one signalling solution with an integrated LED light source.
Designed for straightforward panel installation, the CL2-507G provides clear green illumination for indicating operating states, machine conditions and control-system status. Its compact construction helps simplify panel assembly, while the integrated LED provides long-lasting illumination without requiring a separate replaceable lamp.
With a rated operating voltage of 48–60 V AC/DC, a green LED and a standard 22 mm panel mounting format, the CL2-507G is well suited to industrial control stations and electrical enclosures. Its robust construction and high ingress protection ratings support dependable operation in demanding industrial environments.
Key Advantages
- Compact green LED pilot light for industrial status indication.
- 48–60 V AC/DC operating voltage for compatible industrial control circuits.
- Integrated LED light source provides efficient visual indication.
- Standard 22 mm panel mounting format for control panels and operator stations.
- High IP66, IP67 and IP69K ingress protection ratings.
- Compact all-in-one construction helps simplify installation and panel assembly.
Key Features
- ABB CL2 Compact pilot light series.
- Green illuminated indication.
- 48–60 V AC/DC rated operating voltage.
- Integrated LED illumination.
- 13–17 mA current range.
- 22 mm mounting hole diameter.
- Screw terminals for electrical connection.
- IP66, IP67 and IP69K ingress protection.
- Operating temperature range of -25 to +70 °C.
Reliable Visual Indication for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the operating condition of machinery and electrical systems. The green illumination of the ABB CL2-507G can be incorporated into control circuits to indicate application-defined states such as equipment operation, readiness or other machine and process conditions.
The ABB CL2 Compact range is designed for industrial command and signalling applications. The CL2-507G combines integrated LED illumination, compact panel-mount construction and robust environmental protection to provide dependable indication while simplifying installation in control panels and operator interfaces.
Typical Applications
- Industrial electrical control panels.
- Machine operator stations and control consoles.
- PLC and automation control systems.
- Motor control panels and switchgear assemblies.
- Production and manufacturing machinery.
- OEM equipment and machine building.
