Why Choose the ABB CL2-513G Compact Pilot Light?

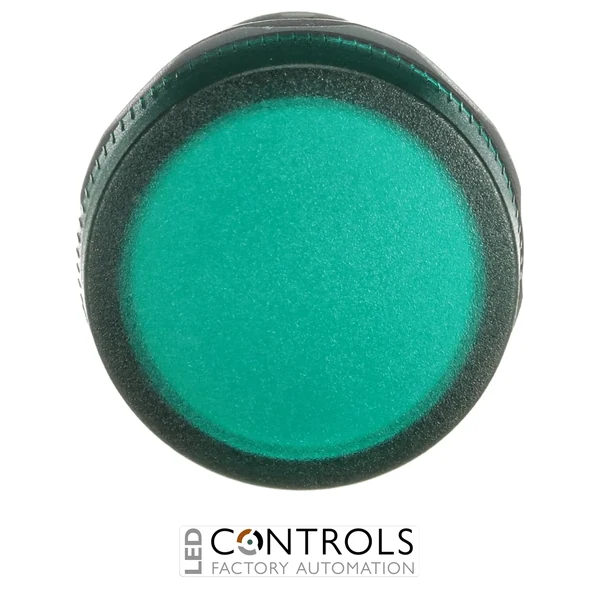

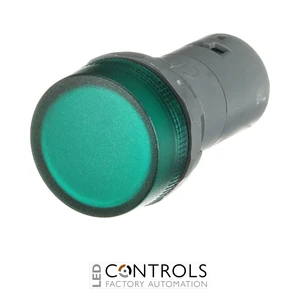

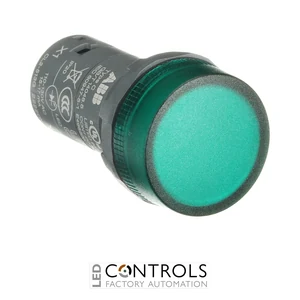

The ABB CL2-513G is a compact green LED pilot light designed to provide clear visual status indication on industrial machinery, electrical control panels and automation equipment. Part of the ABB CL2 Compact pilot device range, it combines the pilot-light head and LED light source in a space-efficient integrated signalling device.
The CL2-513G features green LED illumination and is specifically designed for a 110–130 V AC supply. Its integrated LED provides efficient solid-state illumination without requiring a separate replaceable lamp, helping simplify installation and maintenance in industrial control applications.
Designed for industrial operator interfaces, the CL2-513G uses screw terminals and operates at 50/60 Hz. The green LED has a wavelength of 520 nm, draws approximately 15–17 mA and provides approximately 90 lx illumination, delivering a clear indication point for machine and process signalling.
Key Advantages
- Compact 110–130 V AC green LED pilot light for industrial signalling.
- Integrated LED light source eliminates the need for a separate lamp.
- Clear green visual indication for machine and process status signalling.
- Low current consumption of approximately 15–17 mA.
- 520 nm wavelength green LED with approximately 90 lx illumination.
- Screw-terminal connections for straightforward panel wiring.
- Compact all-in-one construction helps reduce installation time and panel space.
Key Features
- ABB CL2 Compact pilot light.
- 110–130 V AC rated operational voltage.
- Integrated green LED illumination.
- 15–17 mA current consumption.
- 520 nm LED wavelength.
- 90 lx illumination.
- 50/60 Hz supply frequency.
- Screw-terminal connections.
- Compact integrated construction for industrial operator interfaces.
Efficient Green LED Signalling for Industrial Control Systems
Pilot lights provide operators with immediate visual information about machine states, process conditions and electrical control functions. The ABB CL2-513G provides a highly visible green illuminated indication point suitable for operating, availability, confirmation and other application-defined signalling functions in 110–130 V AC control circuits.
Integrated LED technology provides efficient, low-maintenance illumination without a separately installed lamp. Combined with its compact construction, screw-terminal connections and robust front protection, the CL2-513G provides a practical signalling solution for machine builders, panel builders and industrial automation installations.
Typical Applications
- Industrial machinery control panels.
- Machine running and status indication.
- Production and packaging equipment.
- 110–130 V AC control and signalling circuits.
- Operator stations and control consoles.
- Industrial automation and process-control systems.
