Why Choose the ABB CL2-513Y Compact Pilot Light?

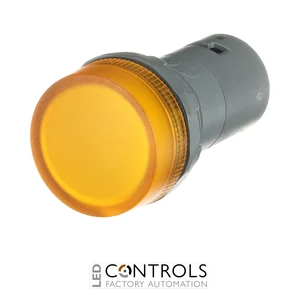

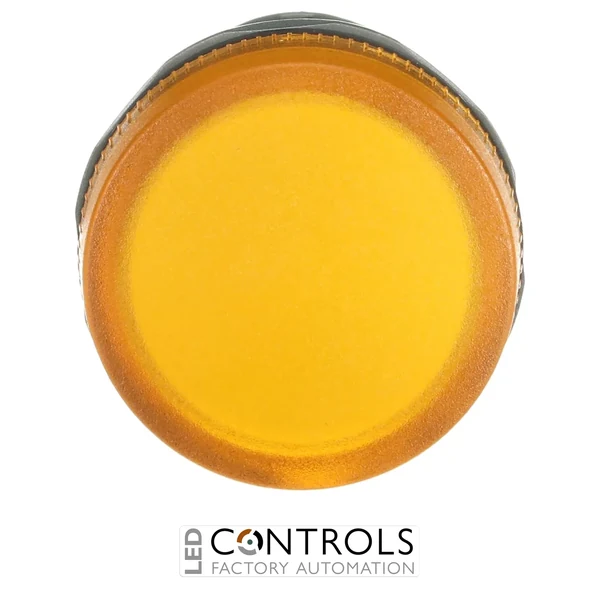

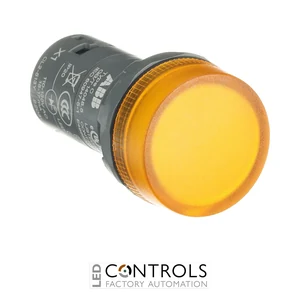

The ABB CL2-513Y, order code 1SFA619403R5133, is a compact yellow LED pilot light designed to provide clear visual status indication in industrial control panels, machinery and automation systems. As part of the ABB Compact Pushbuttons range, it combines an integrated LED light source with a space-efficient 22 mm format for dependable operator signalling.
Designed for a 110–130 V AC supply, the CL2-513Y provides a highly visible yellow indication for machine status, warnings and process conditions. Its integrated LED eliminates the need for a separate lamp while providing efficient illumination and dependable operation in industrial control applications.
The CL2-513Y operates at approximately 15–17 mA and uses a yellow LED with a nominal wavelength of 590 nm and illumination of approximately 85 lx. Its compact construction and high front protection ratings make it suitable for machinery, electrical control cabinets and industrial operator interfaces.
Key Advantages
- Compact LED pilot light designed for industrial control and signalling applications.
- 110–130 V AC rated operating voltage for compatible industrial control circuits.
- Highly visible yellow LED indication for machine status, warnings and process signalling.
- Integrated LED design eliminates the need for a separate lamp.
- IP66, IP67 and IP69K protection for demanding industrial environments.
- Part of the ABB Compact Pushbuttons range for space-efficient panel installation.
Key Features
- ABB Compact Pushbuttons CL2 series.
- Yellow integrated LED pilot light.
- 110–130 V AC rated operating voltage.
- 15–17 mA operating current.
- 590 nm nominal LED wavelength.
- Approximately 85 lx illumination.
- 22 mm panel mounting format.
- Compact flat indicator design for industrial operator interfaces.
Reliable Visual Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about machinery, processes and electrical control circuits. The ABB CL2-513Y uses an integrated yellow LED to provide clear indication for operating states, warnings and process conditions in 110–130 V AC control systems.
The ABB Compact range is designed for industrial operator interfaces where dependable signalling, straightforward installation and efficient use of panel space are important. With robust environmental protection and an integrated LED light source, the CL2-513Y can be incorporated into control panels, machinery and automation systems for reliable visual indication.
Typical Applications
- Industrial machinery control panels.
- Automation and process control systems.
- Operator control stations and interfaces.
- Machine status and warning indication.
- Electrical control cabinets and enclosures.
- OEM machinery and production equipment.
