Why Choose the ABB CL2-513L Compact Pilot Light?

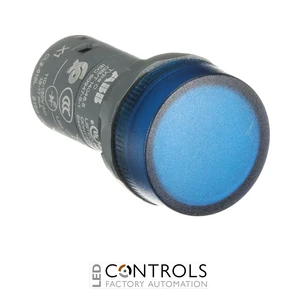

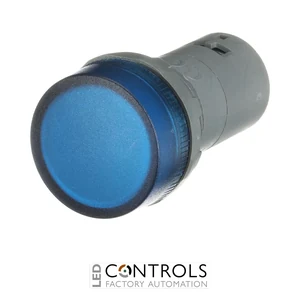

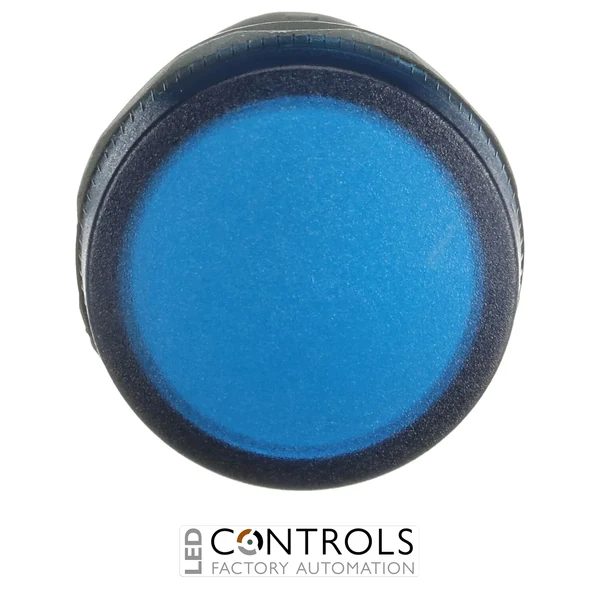

The ABB CL2-513L, order code 1SFA619403R5134, is a compact blue LED pilot light designed to provide clear visual status indication in industrial control panels, machinery and automation systems. As part of the ABB Compact Pushbuttons range, it combines an integrated LED light source with a space-efficient 22 mm format for dependable operator signalling.
Designed for a 110–130 V AC supply, the CL2-513L provides a distinctive blue indication for machine status, process conditions and operator information. Its integrated LED eliminates the need for a separate lamp, helping reduce maintenance requirements while providing efficient and reliable illumination in industrial control applications.
The CL2-513L operates at approximately 15–17 mA and uses a blue LED with a nominal wavelength of 470 nm and illumination of approximately 10 lx. Its compact construction, screw-terminal connections and robust environmental resistance make it suitable for machinery, electrical control cabinets and industrial operator interfaces.
Key Advantages
- Compact LED pilot light designed for industrial control and signalling applications.
- 110–130 V AC rated operating voltage for compatible industrial control circuits.
- Distinctive blue LED indication for machine status and process signalling.
- Integrated LED design eliminates the need for a separate lamp.
- Designed for a high level of dust and water resistance in industrial environments.
- Part of the ABB Compact Pushbuttons range for space-efficient panel installation.
Key Features
- ABB Compact Pushbuttons CL2 series.
- Blue integrated LED pilot light.
- 110–130 V AC rated operating voltage.
- 15–17 mA operating current.
- 470 nm nominal LED wavelength.
- Approximately 10 lx illumination.
- 50 / 60 Hz supply frequency.
- Screw terminals for straightforward electrical connection.
Reliable Visual Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about machinery, processes and electrical control circuits. The ABB CL2-513L uses an integrated blue LED to provide clear indication for operating states and process conditions in 110–130 V AC control systems.
The ABB Compact range is designed for industrial operator interfaces where dependable signalling, straightforward installation and efficient use of panel space are important. The CL2-513L combines an integrated LED with screw-terminal connections and a compact all-in-one construction, making it well suited to control panels, machinery and automation systems.
Typical Applications
- Industrial machinery control panels.
- Automation and process control systems.
- Operator control stations and interfaces.
- Machine status and process indication.
- Electrical control cabinets and enclosures.
- OEM machinery and production equipment.
