Why Choose the ABB CL2-515G Compact Pilot Light?

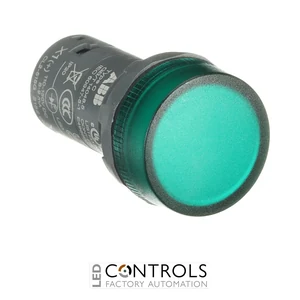

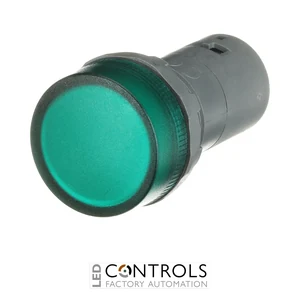

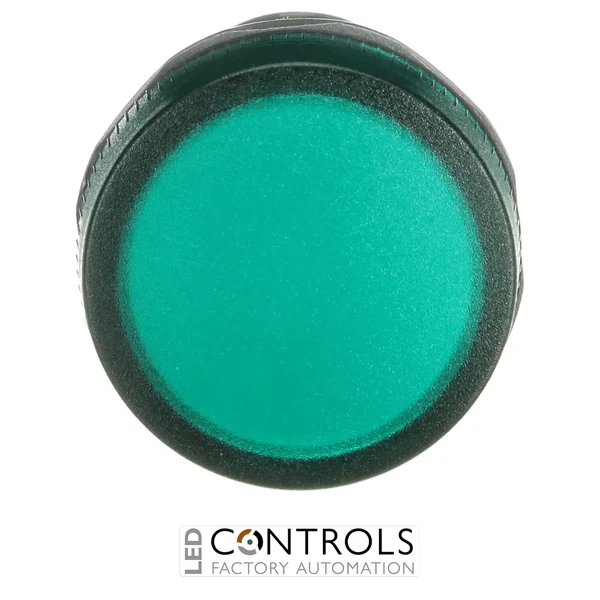

The ABB CL2-515G is a compact and reliable green LED pilot light designed for visual status indication in industrial control panels, machinery and automation systems. As part of the ABB CL2 Compact pilot device range, it provides an efficient all-in-one signalling solution with an integrated LED light source.
Designed for straightforward panel installation, the CL2-515G provides clear green illumination for indicating operating states, machine conditions and control-system status. Its compact construction helps simplify panel assembly, while the integrated LED provides efficient and dependable illumination without requiring a separate replaceable lamp.
With a rated operating voltage of 110–130 V DC, a green LED and a standard 22 mm panel mounting format, the CL2-515G is well suited to industrial control stations and electrical enclosures. Screw terminals provide practical wiring, while the Compact range is engineered for demanding industrial command and signalling applications.
Key Advantages
- Compact green LED pilot light for industrial status indication.
- 110–130 V DC operating voltage for compatible industrial control circuits.
- Integrated LED light source provides efficient visual indication.
- Standard 22 mm panel mounting format for control panels and operator stations.
- Screw terminals support straightforward electrical connection.
- Compact all-in-one construction helps reduce installation time and panel space requirements.
Key Features
- ABB CL2 Compact pilot light series.
- Green illuminated indication.
- 110–130 V DC rated operating voltage.
- Integrated LED illumination.
- 8–9 mA current range.
- 520 nm LED wavelength.
- 22 mm panel mounting format.
- Screw terminals for electrical connection.
- Operating temperature range of -25 to +70 °C.
Reliable Visual Indication for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the operating condition of machinery and electrical systems. The green illumination of the ABB CL2-515G can be incorporated into control circuits to indicate application-defined states such as equipment operation, readiness or other machine and process conditions.
The ABB CL2 Compact range is designed for industrial command and signalling applications where simple installation and dependable operation are important. The CL2-515G combines integrated LED illumination, compact panel-mount construction and screw-terminal wiring to provide a practical signalling solution for machinery and electrical control equipment.
Typical Applications
- Industrial electrical control panels.
- Machine operator stations and control consoles.
- PLC and automation control systems.
- Motor control panels and switchgear assemblies.
- Production and manufacturing machinery.
- OEM equipment and machine building.
