Why Choose the ABB CL2-515Y Compact Pilot Light?

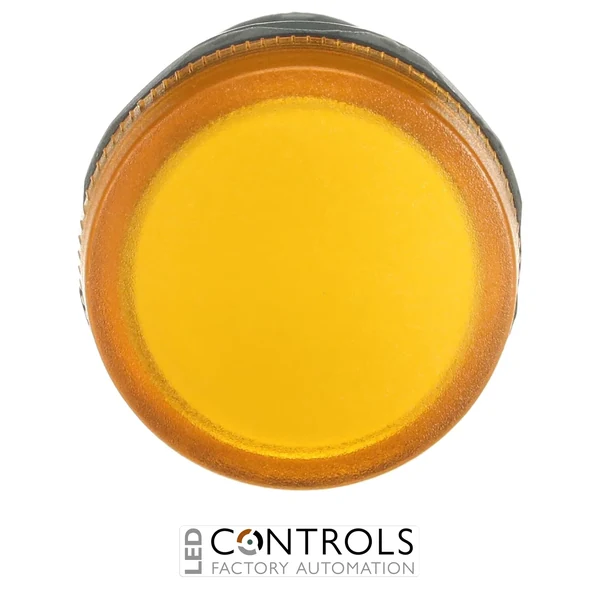

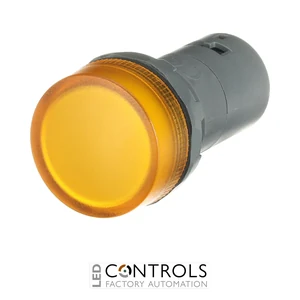

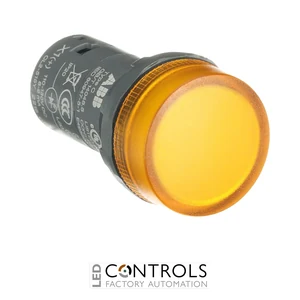

The ABB CL2-515Y is a compact and reliable yellow LED pilot light designed for visual status indication in industrial control panels, machinery and automation systems. As part of the ABB CL2 Compact pilot device range, it combines an integrated LED light source with a space-saving panel-mounted design for industrial command and signalling applications.
Designed for straightforward installation, the CL2-515Y provides clear yellow illumination for communicating machine conditions, warnings and other application-defined operating states. Its integrated LED eliminates the need for a separate lamp, while its compact construction makes it suitable for control panels, operator stations and OEM machinery where panel space is important.
With a rated operating voltage of 110–130 V DC, a rated current of 8–9 mA and a yellow LED, the CL2-515Y provides efficient visual indication for compatible DC control circuits. The ABB Compact pilot device range uses the standard 22 mm panel mounting format widely employed in industrial control equipment.
Key Advantages
- Compact yellow LED pilot light for industrial status indication.
- 110–130 V DC operating voltage for compatible industrial control circuits.
- Low 8–9 mA rated current for efficient LED indication.
- Integrated LED light source eliminates the need for a separate lamp.
- Standard 22 mm panel mounting format for industrial operator interfaces.
- Compact all-in-one construction helps simplify control-panel assembly.
Key Features
- ABB CL2 Compact pilot light series.
- Yellow illuminated indication.
- 110–130 V DC rated operating voltage.
- 8–9 mA rated current.
- Integrated LED illumination.
- 590 nm LED wavelength.
- 50 lx illumination.
- 22 mm compact pilot device format.
- Designed for industrial control, signalling and operator-interface applications.
Reliable Visual Indication for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the operating condition of machinery and electrical systems. The yellow illumination of the ABB CL2-515Y can be incorporated into control circuits to communicate application-defined warnings, machine conditions and other process states clearly at the operator interface.
The ABB CL2 Compact range is designed for industrial command and signalling applications where dependable indication and efficient use of panel space are important. The CL2-515Y combines LED illumination with a compact 22 mm format, making it a practical signalling component for machinery, control panels and automated equipment.
Typical Applications
- Industrial electrical control panels.
- Machine operator stations and control consoles.
- PLC and automation control systems.
- Motor control panels and switchgear assemblies.
- Production and manufacturing machinery.
- OEM automation equipment and machine building.
