Why Choose the ABB CL2-520G Compact Pilot Light?

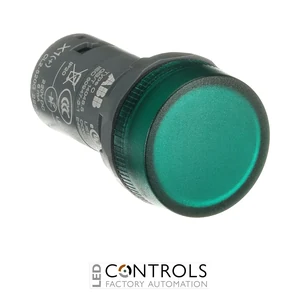

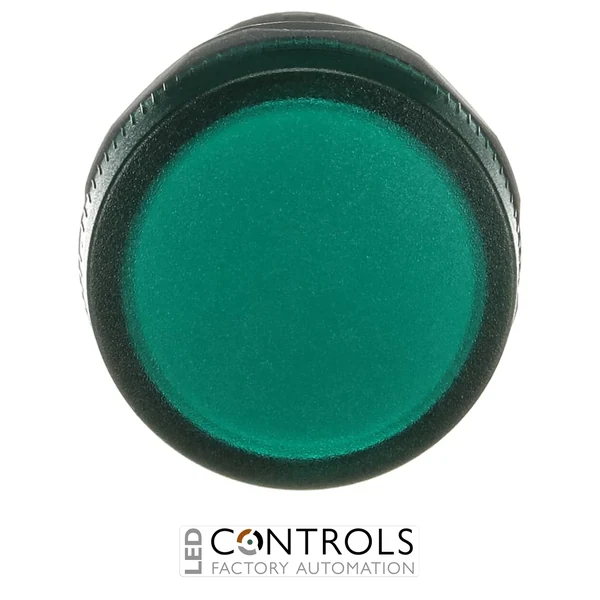

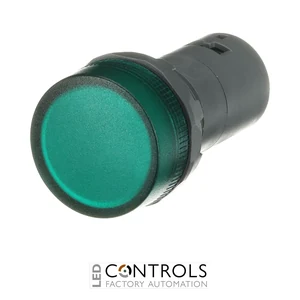

The ABB CL2-520G, order code 1SFA619403R5202, is a compact green LED pilot light designed to provide clear visual status indication in industrial control panels, machinery and automation systems. As part of the ABB Compact Pushbuttons range, it combines an integrated LED light source with a space-efficient 22 mm panel format for dependable operator signalling.
Designed for a 220 V DC supply, the CL2-520G provides a highly visible green indication for machine status, normal operating conditions and process information. Its integrated LED eliminates the need for a separate lamp, helping reduce installation and maintenance requirements while providing efficient and reliable illumination.
The CL2-520G has a rated current of 6 mA, an anti-inductive voltage rating of 20 V peak, a green LED with a nominal wavelength of 520 nm and illumination of approximately 90 lx. Its compact construction, screw-terminal connections and high front protection make it well suited to demanding industrial control applications.
Key Advantages
- Compact LED pilot light designed for industrial control and signalling applications.
- 220 V DC rated operating voltage for compatible industrial DC control circuits.
- Highly visible green LED indication for machine status and process signalling.
- Low 6 mA rated current for efficient operation.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Part of the ABB Compact Pushbuttons range for space-efficient panel installation.
Key Features
- ABB Compact Pushbuttons CL2 series.
- Green integrated LED pilot light.
- 220 V DC rated operating voltage.
- 6 mA rated current.
- 20 V peak anti-inductive voltage.
- 520 nm nominal LED wavelength.
- Approximately 90 lx illumination.
- 22 mm panel cut-out with screw-terminal electrical connections.
Reliable Visual Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about machinery, processes and electrical control circuits. The ABB CL2-520G uses an integrated green LED to provide clear indication of operating states and process conditions in 220 V DC control systems while drawing only 6 mA of rated current.
The ABB Compact range is designed for industrial operator interfaces where dependable signalling, straightforward installation and efficient use of panel space are important. With robust front protection, screw-terminal connections and an integrated LED light source, the CL2-520G can be incorporated into control panels, machinery and automation systems for reliable visual indication.
Typical Applications
- Industrial machinery control panels.
- Automation and process control systems.
- Operator control stations and interfaces.
- Machine running and status indication.
- Electrical control cabinets and enclosures.
- OEM machinery and production equipment.
