Why Choose the ABB CL2-520C Compact Pilot Light?

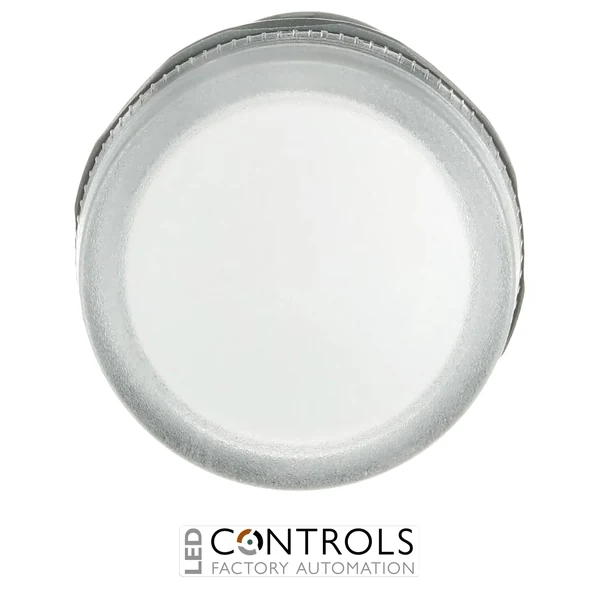

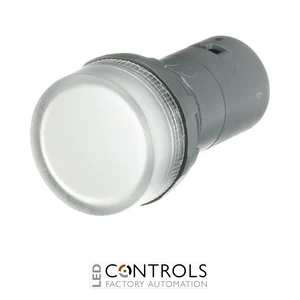

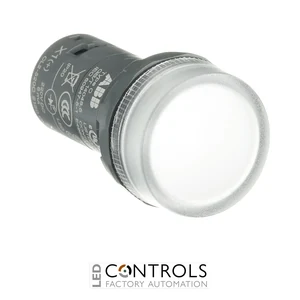

The ABB CL2-520C is a compact and reliable clear LED pilot light designed for visual status indication in industrial control panels, machinery and automation systems. As part of the ABB CL2 Compact pilot device range, it combines the pilot light head and integrated LED into an efficient all-in-one signalling device.
Designed for straightforward panel installation, the CL2-520C provides bright clear illumination for communicating machine conditions, equipment status and other application-defined signals. Its integrated LED eliminates the need for a separate replaceable bulb, helping simplify installation and maintenance in industrial operator interfaces.
With a rated operating voltage of 220 V DC, a rated current of 6 mA and clear LED illumination of 120 lx, the CL2-520C provides efficient visual signalling for compatible DC control circuits. Its compact construction and screw-terminal connections make it particularly suitable for electrical control panels and OEM machinery.
Key Advantages
- Compact clear LED pilot light for industrial status indication.
- 220 V DC operating voltage for compatible industrial control circuits.
- Integrated LED light source eliminates the need for a separate bulb.
- Low 6 mA rated current for efficient LED signalling.
- 120 lx illumination provides clear visual indication.
- Screw terminals support straightforward industrial panel wiring.
Key Features
- ABB CL2 Compact pilot light series.
- Clear illuminated indication.
- 220 V DC rated operating voltage.
- Integrated LED illumination.
- 6 mA rated current.
- 20 V peak anti-inductive voltage.
- 120 lx illumination.
- Screw terminals for electrical connection.
- Operating temperature range of -25 to +70 °C.
Reliable Visual Indication for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the operating condition of machinery and electrical systems. The clear illumination of the ABB CL2-520C can be incorporated into control circuits to communicate application-defined equipment states, process conditions and other status information clearly at the operator interface.
The ABB CL2 Compact range is designed as an efficient all-in-one solution for industrial command and signalling applications. The CL2-520C combines integrated LED illumination, compact construction and practical screw-terminal wiring to provide dependable indication while helping reduce installation time and panel-space requirements.
Typical Applications
- Industrial electrical control panels.
- Machine operator stations and control consoles.
- PLC and automation control systems.
- Motor control panels and switchgear assemblies.
- Production and manufacturing machinery.
- OEM automation equipment and machine building.
