Why Choose the ABB CL2-523R Compact Pilot Light?

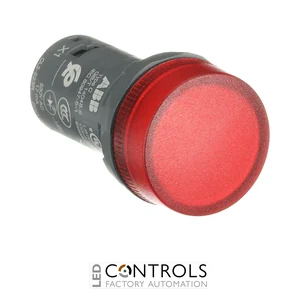

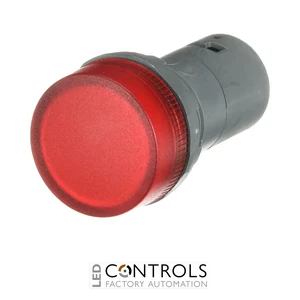

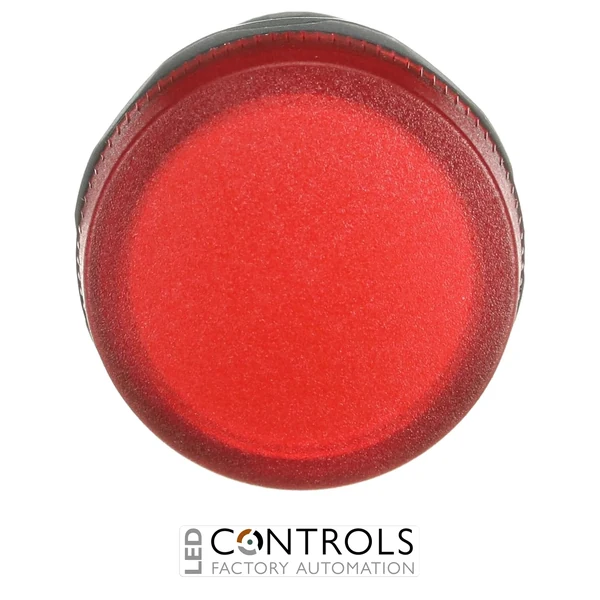

The ABB CL2-523R is a compact and reliable red LED pilot light designed for visual status indication in industrial control panels, machinery and automation systems. As part of the ABB CL2 Compact pilot device range, it combines a pilot light head and integrated LED into an efficient all-in-one signalling device.
Designed for straightforward panel installation, the CL2-523R provides clear red illumination for communicating machine conditions, alarms, warnings and other application-defined operating states. Its integrated LED simplifies the signalling assembly, while the compact construction helps reduce installation time and space requirements in operator interfaces and control panels.
With a rated operating voltage of 230 V AC, a red LED and a standard 22 mm panel mounting format, the CL2-523R is well suited to industrial control stations and electrical enclosures. Its high level of dust and water resistance supports dependable use in demanding industrial environments.
Key Advantages
- Compact red LED pilot light for industrial status indication.
- 230 V AC operating voltage for compatible industrial control circuits.
- Integrated LED light source provides efficient visual signalling.
- Standard 22 mm panel mounting format for control panels and operator stations.
- High IP66, IP67 and IP69K ingress protection ratings.
- Compact all-in-one construction helps reduce installation time and panel space requirements.
Key Features
- ABB CL2 Compact pilot light series.
- Red illuminated indication.
- 230 V AC rated operating voltage.
- Integrated LED illumination.
- 50 / 60 Hz supply frequency.
- 22 mm mounting hole diameter.
- Flat indicator design.
- Screw terminals for electrical connection.
- IP66, IP67 and IP69K ingress protection.
- Operating temperature range of -25 to +70 °C.
Reliable Visual Indication for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the operating condition of machinery and electrical systems. The red illumination of the ABB CL2-523R can be incorporated into control circuits to communicate application-defined alarms, warnings, equipment conditions and other machine or process states clearly at the operator interface.
The ABB CL2 Compact range is designed as an all-in-one solution for industrial command and signalling applications. The CL2-523R combines integrated LED illumination, compact panel-mount construction and robust environmental protection to provide dependable indication while simplifying installation in control panels and operator stations.
Typical Applications
- Industrial electrical control panels.
- Machine operator stations and control consoles.
- Alarm and warning indication circuits.
- PLC and automation control systems.
- Motor control panels and switchgear assemblies.
- Production and manufacturing machinery.
- OEM automation equipment and machine building.
