Why Choose the ABB CL2-523C Compact Pilot Light?

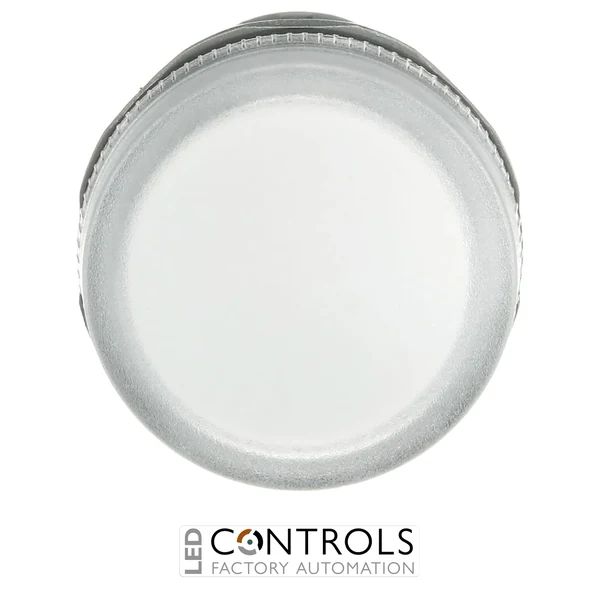

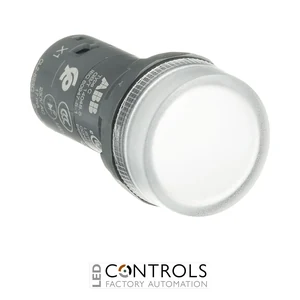

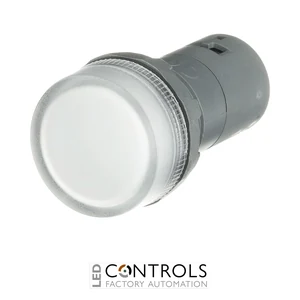

The ABB CL2-523C, order code 1SFA619403R5238, is a compact clear pilot light with an integrated white LED designed to provide bright visual status indication in industrial control panels, machinery and automation systems. As part of the ABB Compact Pushbuttons range, it combines an all-in-one LED light source with a space-efficient 22 mm format for dependable operator signalling.
Designed for a 230 V AC supply, the CL2-523C provides clear white illumination for machine status, process conditions and operator information. Its integrated LED eliminates the need for a separate lamp, helping reduce installation and maintenance requirements while providing efficient and reliable illumination in industrial control applications.
The CL2-523C has an operating current of approximately 17 mA, an anti-inductive voltage rating of 35 V and illumination of approximately 225 lx. Its compact construction and screw-terminal connections make it well suited to machinery, electrical control cabinets and industrial operator interfaces.
Key Advantages
- Compact LED pilot light designed for industrial control and signalling applications.
- 230 V AC rated operating voltage for compatible industrial control circuits.
- Clear lens with integrated white LED for bright visual indication.
- Approximately 225 lx illumination for excellent visibility.
- Integrated LED design eliminates the need for a separate lamp.
- Part of the ABB Compact Pushbuttons range for space-efficient panel installation.
Key Features
- ABB Compact Pushbuttons CL2 series.
- Clear pilot light with integrated white LED.
- 230 V AC rated operating voltage.
- Approximately 17 mA operating current.
- 35 V anti-inductive voltage.
- Approximately 225 lx illumination.
- 50 / 60 Hz supply frequency.
- Screw terminals for straightforward electrical connection.
Reliable Visual Indication for Industrial Controls
Pilot lights provide operators with immediate visual feedback about machinery, processes and electrical control circuits. The ABB CL2-523C uses an integrated white LED behind a clear indicator to provide bright, easily visible indication of operating states and process conditions in 230 V AC control systems.
The ABB Compact range is designed as an all-in-one solution for industrial operator interfaces where dependable signalling, straightforward installation and efficient use of panel space are important. The CL2-523C combines its LED light source and electrical connections within a compact assembly, making it suitable for new control-panel installations as well as machinery maintenance and replacement applications.
Typical Applications
- Industrial machinery control panels.
- Automation and process control systems.
- Operator control stations and interfaces.
- Machine status and process indication.
- Electrical control cabinets and enclosures.
- OEM machinery and production equipment.
