Why Choose the ABB CE3T-10B-11 Machine Stop?

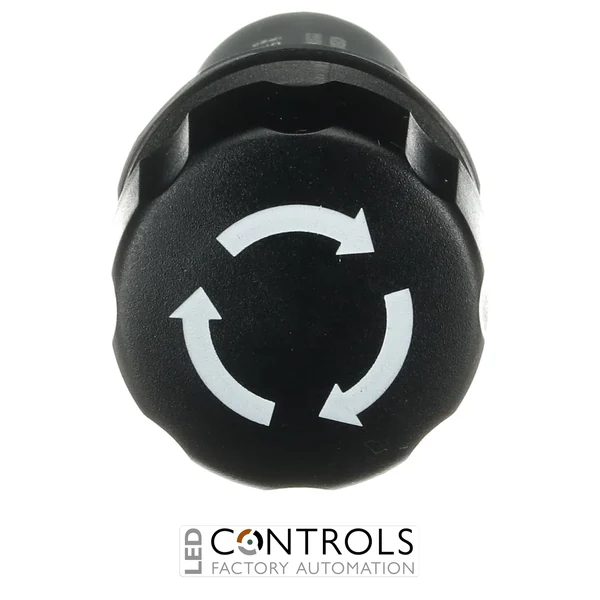

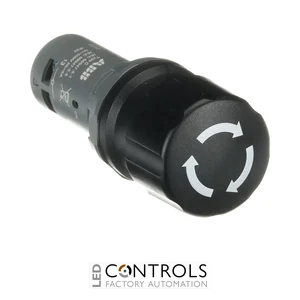

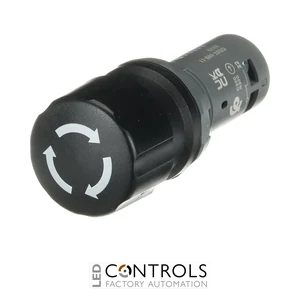

The ABB CE3T-10B-11, order code 1SFA619500R1076, is a compact machine stop pushbutton designed for industrial machinery, control panels and operator stations. Part of the ABB Compact Pushbuttons range, it features a 30 mm black mushroom actuator, maintained operation and twist-release mechanism for deliberate machine-stop control.
The CE3T-10B-11 is supplied with 1 normally open (1NO) and 1 normally closed (1NC) contact, allowing it to interface with suitable industrial control circuits. Its non-illuminated design and black actuator distinguish this machine-stop version within ABB's compact pilot-device range.
Designed for demanding industrial environments, the CE3T-10B-11 provides IP66, IP67 and IP69K front protection with IP20 terminal protection. It uses screw terminals, supports a rated operational voltage range of 24–300 V and has a rated insulation voltage of 300 V.
Key Advantages
- 30 mm black mushroom actuator for prominent machine-stop operation.
- Twist-release mechanism requires deliberate manual resetting after actuation.
- Integrated 1NO + 1NC contact configuration for flexible control-circuit integration.
- Maintained operating function keeps the device actuated until it is manually released.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Compact ABB construction combines the actuator and contacts in a space-efficient control-panel device.
Key Features
- ABB Compact Pushbuttons CE3T series.
- 30 mm black mushroom actuator.
- Twist-release reset mechanism.
- Maintained operating function.
- 1 normally open + 1 normally closed contact.
- Non-illuminated construction.
- 24–300 V rated operational voltage range.
- Screw-terminal connections with 0.8 N·m tightening torque.
Maintained Machine-Stop Control with Twist Release
The ABB CE3T-10B-11 is designed to provide a prominent manual machine-stop control within industrial operator interfaces. Pressing the 30 mm mushroom actuator operates the maintained mechanism and changes the state of its 1NO + 1NC contacts, while the twist-release design provides deliberate manual resetting.
Its compact construction makes the CE3T-10B-11 suitable for machinery and control-panel installations where panel space, environmental protection and reliable mechanical operation are important. The combination of robust front protection, screw terminals and established IEC, UL and CSA standards makes it suitable for a wide range of industrial machine-control applications.
Typical Applications
- Industrial machinery control panels.
- Machine-stop control circuits.
- Automation and production equipment.
- Operator control stations and interfaces.
- Manufacturing and material-handling machinery.
- OEM equipment and industrial control systems.
