Why Choose the ABB CE4P-10R-02 Compact Emergency Stop?

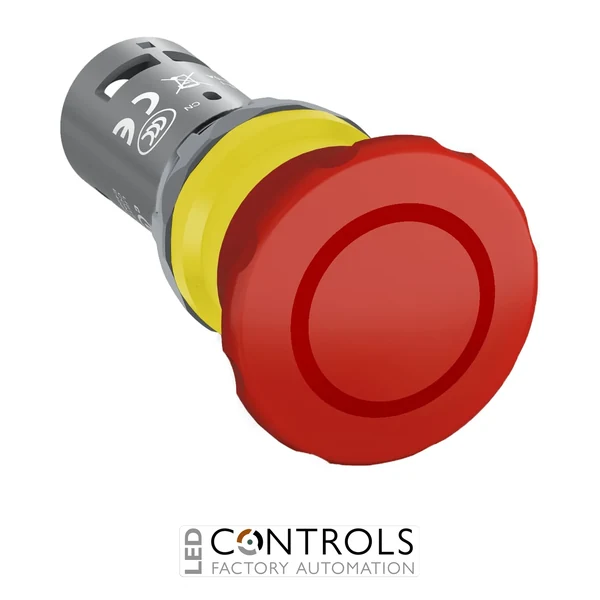

The ABB CE4P-10R-02 is a compact 40 mm red mushroom emergency-stop pushbutton designed for machinery, automation equipment and industrial control panels. Part of ABB's Compact pilot-device range, it combines the emergency-stop operator and contact elements in an efficient all-in-one assembly for straightforward panel installation.
The CE4P-10R-02 uses a maintained pull-release mechanism. When the mushroom actuator is pressed, the device remains mechanically latched until it is deliberately pulled to reset, providing the intentional reset action required for industrial emergency-stop applications.
This non-illuminated model incorporates 2 normally closed (NC) contacts and installs through a standard 22 mm panel mounting hole. With IP66, IP67 and IP69K front protection, screw-terminal connections and a mechanical durability of 0.5 million operations, it is engineered for demanding industrial safety-control environments.
Key Advantages
- Large 40 mm red mushroom actuator for readily identifiable emergency-stop operation.
- Pull-release mechanism provides deliberate manual resetting after actuation.
- Maintained action keeps the emergency-stop operator mechanically latched until reset.
- Integrated 2NC contact configuration for emergency-stop control circuits.
- Non-illuminated all-in-one Compact-range construction.
- Standard 22 mm panel mounting simplifies control-panel integration.
- IP66, IP67 and IP69K front protection supports demanding industrial environments.
- Mechanical durability rated at 0.5 million operations.
Key Features
- ABB CE4P Compact emergency stop.
- 40 mm mushroom actuator.
- Red actuator colour.
- Pull release.
- Maintained operating action.
- 2 normally closed contacts.
- Non-illuminated design.
- 24–300 V rated operational range.
- 22 mm panel mounting hole.
- Screw-terminal connections.
- IP66 / IP67 / IP69K front protection.
Maintained Emergency-Stop Control for Industrial Machinery
Emergency-stop pushbuttons provide operators with a readily accessible means of initiating an emergency stopping function when hazardous conditions arise. The ABB CE4P-10R-02 uses a prominent 40 mm red mushroom actuator with maintained action, ensuring that the device remains mechanically latched after operation until a deliberate pull action resets it.
The integrated 2NC contact arrangement provides two normally closed switching paths for emergency-stop control circuitry. Combined with its Compact all-in-one construction, robust ingress protection and screw-terminal connection, the CE4P-10R-02 is designed for dependable integration into industrial machinery and automation safety systems.
Typical Applications
- Industrial machinery emergency-stop circuits.
- Manufacturing and assembly equipment.
- Production and packaging machinery.
- Conveyor and material-handling systems.
- Machine control panels and operator stations.
- Automated manufacturing cells.
- Industrial safety and shutdown control systems.
