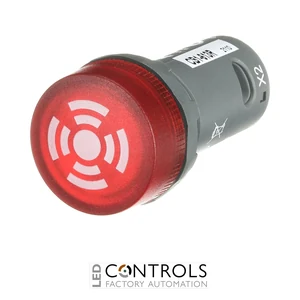

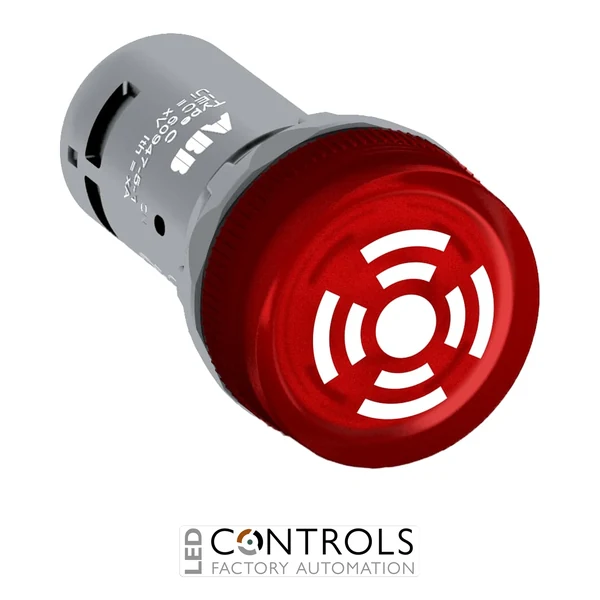

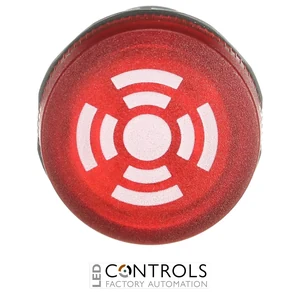

Why Choose the ABB CB1-613R Illuminated Buzzer?
The ABB CB1-613R is a compact red illuminated buzzer designed to provide simultaneous audible and visual signalling in industrial control panels, machinery and automation systems. Part of ABB's Compact pilot device range, it combines pulsating sound and pulsating red illumination in a single space-efficient signalling device.
Designed for 230 V AC control circuits, the CB1-613R provides a pulsating audible signal together with pulsating red illumination. This dual-mode signalling helps attract operator attention when the device is assigned to alarms, equipment conditions, process notifications or other application-defined indications.
The CB1-613R has a rated current of 70 mA, red-light luminance of 60 mcd and a unit weight of just 0.021 kg. Its integrated audible and visual functions provide two notification methods from one compact panel-mounted device.
Key Advantages
- Combines pulsating audible and red visual signalling in one compact device.
- 230 V AC rated operating voltage for compatible industrial control circuits.
- Pulsating sound with pulsating light provides attention-getting dual-mode signalling.
- 70 mA rated current at the specified operating voltage.
- 60 mcd red-light luminance provides clear visual indication.
- Compact integrated construction helps minimise control-panel space requirements.
Key Features
- ABB CB1 Compact buzzer series.
- Red illuminated buzzer.
- Pulsating audible output.
- Pulsating red illumination.
- 230 V AC rated operating voltage.
- 70 mA rated current.
- 60 mcd luminance.
- 0.021 kg unit weight.
- Integrated audible and visual signalling in a single device.
- Designed for industrial control and operator-signalling applications.
Pulsating Audible and Visual Signalling for Industrial Control Systems
Industrial signalling devices help communicate equipment states, process conditions and application-defined alerts to operators. The ABB CB1-613R combines a pulsating audible signal with pulsating red illumination, allowing one compact panel device to provide both audible and visual notification.
Its 230 V AC operating voltage makes the CB1-613R suitable for compatible industrial control circuits, while the integrated design simplifies panel layouts by combining two signalling functions in one device. The pulsating output is particularly useful where a condition needs to attract operator attention more distinctly than a continuous indication.
Typical Applications
- Industrial machinery control panels.
- Machine operator stations and control consoles.
- Application-defined alarm and warning indication.
- Process and equipment status signalling.
- PLC and automation control systems.
- Manufacturing and production equipment.
- OEM automation and machine-building equipment.
