Why Choose the ABB CEP1-1001 Compact Enclosure?

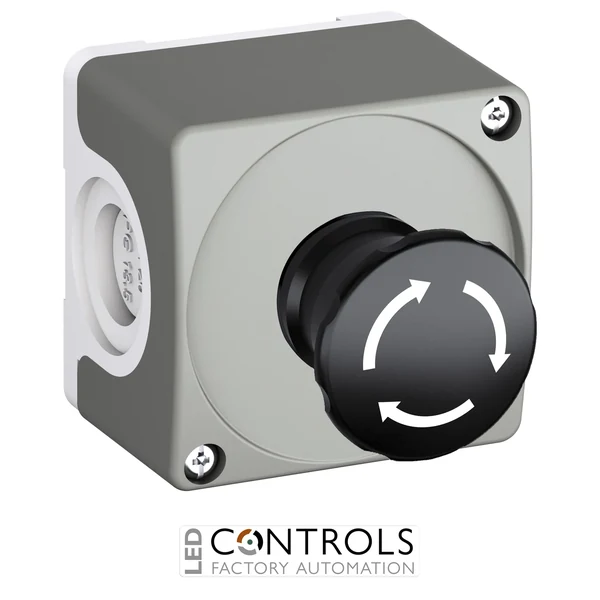

The ABB CEP1-1001, order code 1SFA619811R1001, is a complete single-position compact machine-stop enclosure designed for industrial machinery, automation systems and operator stations. Part of the ABB Compact Pushbuttons range, it combines a robust plastic enclosure with a 40 mm black mushroom machine-stop pushbutton in a ready-assembled control station.
The CEP1-1001 features maintained twist-release operation and an integrated 1 normally open (1NO) + 1 normally closed (1NC) contact arrangement. Pressing the mushroom actuator operates and latches the contacts, while deliberate rotation of the actuator releases the mechanism and returns the device to its normal position.
Designed for demanding industrial environments, the enclosure uses dark grey / light grey plastic construction and provides IP66, IP67 and IP69K protection. With compact dimensions of 48 × 65 × 65 mm, the CEP1-1001 provides a convenient enclosed machine-stop solution without requiring a separate operator enclosure.
Key Advantages
- Complete assembled machine-stop station reduces the need to specify separate actuator, contact and enclosure components.
- Prominent 40 mm black mushroom actuator provides clear manual machine-stop control.
- Twist-release mechanism requires deliberate manual resetting after operation.
- Integrated 1NO + 1NC contacts provide flexible switching options for machine-control circuits.
- IP66, IP67 and IP69K enclosure protection supports use in demanding industrial environments.
- Compact single-position plastic enclosure is suitable for local machine and operator control stations.
Key Features
- ABB Compact Pushbuttons CEP1 series.
- Single-position assembled plastic enclosure.
- 40 mm black mushroom machine-stop actuator.
- Maintained twist-release operation.
- 1 normally open + 1 normally closed contact.
- Dark grey / light grey enclosure.
- 24–300 V rated operational voltage.
- IP66 / IP67 / IP69K enclosure protection.
Ready-Assembled Machine-Stop Control Station
The ABB CEP1-1001 integrates the machine-stop actuator, switching contacts and protective enclosure into one compact assembly. Pressing the 40 mm black mushroom actuator latches the maintained mechanism and changes the state of its 1NO + 1NC contacts. The actuator remains operated until it is deliberately reset using the twist-release mechanism.
Unlike a panel-mounted pushbutton that requires a suitable enclosure to be provided separately, the CEP1-1001 is supplied as an assembled station in a robust plastic housing. Its compact dimensions and high enclosure protection ratings make it particularly useful for local machine controls, production equipment and operator stations requiring an enclosed machine-stop device.
Typical Applications
- Industrial machinery stop stations.
- Local machine-control points.
- Automation and production equipment.
- Conveyor and material-handling systems.
- Manufacturing and processing machinery.
- OEM machinery and standalone operator stations.
