Why Choose the ABB E211X-25-10 On-Off Switch?

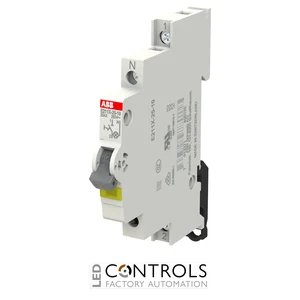

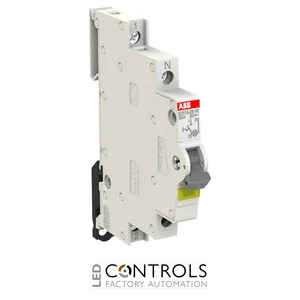

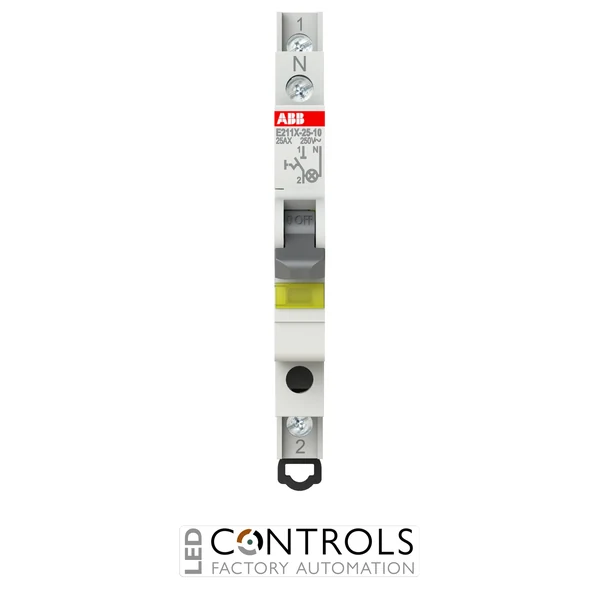

The ABB E211X-25-10 is a compact 25 A modular on-off switch with an integrated yellow LED, designed for manual switching and visual status indication in residential, commercial and industrial electrical installations. Part of the ABB E210 command and signalling range, it combines circuit switching and indication in a space-efficient DIN-rail device.
The E211X-25-10 features one normally open (1NO) contact together with one yellow LED for switch-position indication. ABB's E211X variants integrate LED signalling directly into the switching device, reducing the need for a separate indication component where local visual status feedback is required.
Rated at 25 A and 250 V AC, the E211X-25-10 is only 9 mm wide and occupies half a standard module. Its compact dimensions, IP20 protection and AC-22A switching capability make it suitable for controlling indicators, fans, air-conditioning equipment and other appropriate electrical loads.
Key Advantages
- Combines 25 A ON/OFF switching and visual indication in one compact device.
- Integrated yellow LED provides clear switch-position indication.
- 1NO contact configuration for straightforward circuit switching.
- AC-22A rated operational current of 25 A at 400 V.
- Only 9 mm wide for space-efficient DIN-rail installation.
- Suitable for controlling indicators and electrical equipment such as fans and air-conditioning systems.
Key Features
- ABB E211X / E210 series modular on-off switch.
- 25 A rated current.
- 1 normally open (1NO) main contact.
- 1 integrated yellow LED.
- 250 V AC rated voltage.
- 250/400 V AC operational voltage according to EN.
- 50/60 Hz rated frequency.
- 3 kA rated service short-circuit breaking capacity.
- 6 kV rated impulse withstand voltage.
- IP20 degree of protection.
Reliable Switching with Integrated LED Indication
The ABB E211X range combines manual ON/OFF switching with integrated visual indication. In the E211X-25-10, the yellow LED provides a convenient visual indication of switch position, helping operators identify circuit status directly at the distribution or control panel.
With its 25 A rating, 1NO contact and narrow 9 mm format, the E211X-25-10 provides both control and indication while conserving valuable DIN-rail space. This makes it particularly useful where a compact switching device with local visual feedback is required.
Typical Applications
- Residential and commercial distribution boards.
- Industrial electrical control panels.
- Manual switching with visual status indication.
- Indicator and signalling circuits.
- Fans and ventilation equipment.
- Air-conditioning and suitable electrical loads.
