Why Choose the ABB E211X2530 On-Off Switch?

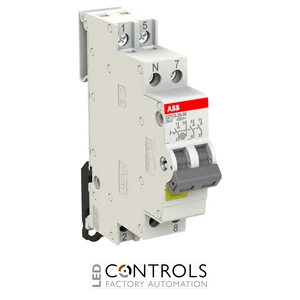

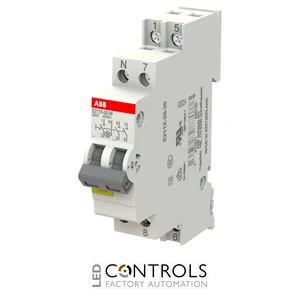

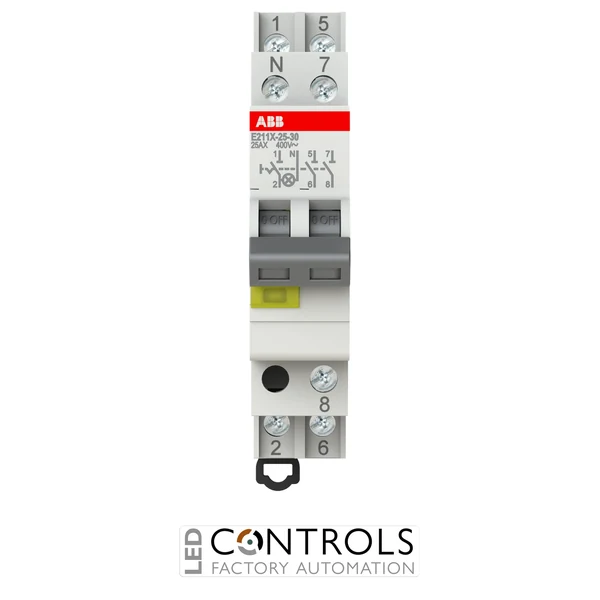

The ABB E211X2530, product type E211X-25-30, is a compact and reliable 3-pole modular On-Off switch with integrated yellow LED contact indication designed for switching electrical loads and providing clear visual status indication in low-voltage distribution systems. As part of the ABB E210 command and signalling range, it is suitable for controlling indicators, fans, air-conditioning equipment and other electrical components.
The E211X-25-30 features three normally open (3NO) contacts, a rated current of 25 A and one integrated yellow LED. The LED operates at 115–250 V AC, providing convenient visual contact indication while the switch delivers dependable three-pole control from a single modular device.
With a rated operational voltage of 250/400 V AC according to EN and an AC-22A operational current rating of 25 A at 400 V AC, the E211X-25-30 is suitable for switching mixed resistive and inductive loads. Its compact 18 mm width, equivalent to one modular spacing, enables straightforward DIN-rail integration within electrical distribution boards and control panels.
Key Advantages
- Compact On-Off switch with integrated yellow LED indication.
- 25 A rated current for electrical switching applications.
- Three normally open (3NO) contacts for simultaneous three-pole switching.
- Yellow LED provides clear visual contact indication.
- 115–250 V AC LED operating voltage.
- AC-22A rating of 25 A at 400 V AC for mixed resistive and inductive loads.
- Compact 18 mm, 1-module width for DIN-rail installations.
- IP20 protection rating for installation within suitable electrical enclosures.
Key Features
- ABB E210 command and signalling range.
- E211X-25-30 On-Off switch.
- 25 A rated current.
- 3-pole, 3NO contact configuration.
- One integrated yellow LED.
- 115–250 V AC LED voltage.
- 250/400 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- 6 kV rated impulse withstand voltage.
- 3 kA rated service short-circuit breaking capacity.
- IP20 degree of protection.
- Compact 1-module, 18 mm-wide construction.
Reliable Switching with Visual Status Indication
On-Off switches such as the ABB E211X-25-30 provide manual control of electrical loads while the integrated LED gives a convenient visual indication of contact status. This combination helps operators identify the switching condition directly at the electrical distribution board while reducing the need for a separate indication device.
The ABB E211X range combines the switching functionality of modular E211 devices with integrated LED indication. The E211X-25-30 provides a 25 A switching rating, three normally open contacts and a yellow LED within a compact 18 mm DIN-rail housing, providing an efficient solution for three-pole switching and indication.
Typical Applications
- Electrical distribution boards and control panels.
- Lighting switching and status indication.
- Fans and ventilation equipment.
- Air-conditioning equipment.
- Building-services control systems.
- Residential and commercial electrical installations.
- Industrial auxiliary and control circuits.
- Applications requiring three-pole switching with visible LED indication.
