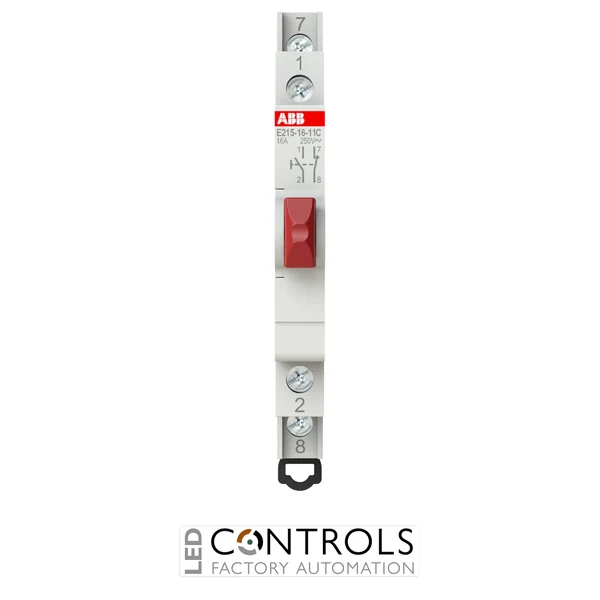

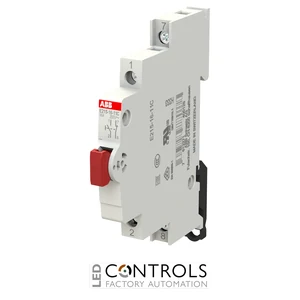

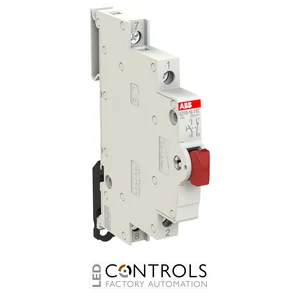

Why Choose the ABB E215-16-11C Pushbutton?
The ABB E215-16-11C is a compact 16 A modular pushbutton designed for momentary command and remote-control functions in residential, commercial and industrial electrical installations. Part of the ABB E210 command and signalling range, it provides dependable pulse-contact operation in a space-efficient DIN-rail format.
The E215-16-11C features one normally open (1NO) and one normally closed (1NC) contact together with a clearly identifiable red pushbutton. Its monostable, momentary action changes the contact states while the button is pressed and returns to its normal state when released, making it suitable for control, signalling and remote switching circuits.
Rated at 16 A and 250 V AC according to EN, the E215-16-11C is only 9 mm wide and occupies half a standard module. Its IP20 protection, low 0.5 W power loss and DIN-rail construction provide a compact solution for modern electrical control assemblies.
Key Advantages
- Compact 16 A modular pushbutton for momentary command functions.
- 1NO + 1NC contact configuration provides complementary control outputs.
- Red operating button provides clear visual identification.
- 250 V AC rated operational voltage according to EN.
- Only 9 mm wide for space-efficient DIN-rail installation.
- Suitable for remote control and command functions in a wide range of electrical installations.
Key Features
- ABB E215 / E210 series modular pushbutton.
- 16 A rated current.
- 1 normally open (1NO) contact.
- 1 normally closed (1NC) contact.
- Red pushbutton.
- Momentary / monostable operation.
- 250 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- IP20 degree of protection.
- Compact 0.5-module DIN-rail format.
Reliable Momentary Control for Electrical Circuits
Modular pushbuttons provide momentary electrical commands for functions such as remote switching, signalling and equipment control. The ABB E215-16-11C combines one normally open and one normally closed contact, so pressing the red button simultaneously closes the NO contact and opens the NC contact before the mechanism returns to its normal state when released.
With its 16 A rating, compact 9 mm width and complementary contact arrangement, the E215-16-11C is well suited to control circuits where a clear manual pulse command is required. DIN-rail mounting allows straightforward integration alongside other modular protection, command and signalling devices.
Typical Applications
- Remote control of electrical equipment.
- Residential and commercial distribution boards.
- Industrial electrical control panels.
- Momentary start, command and signalling circuits.
- Automation and auxiliary control systems.
- DIN-rail-mounted command and control assemblies.
