Why Choose the ABB E217-16-10B Illuminated Pushbutton?

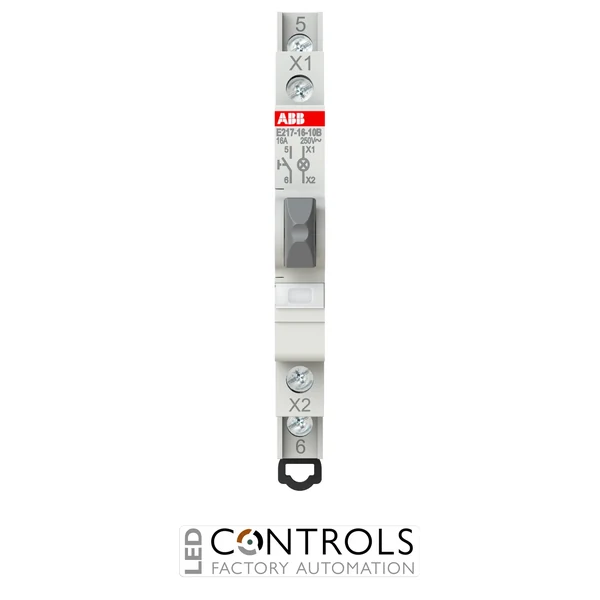

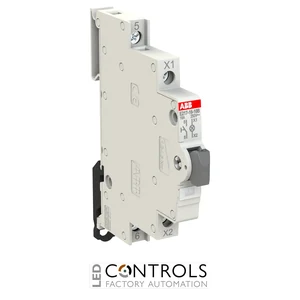

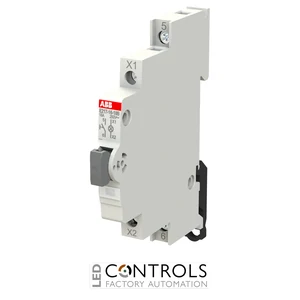

The ABB E217-16-10B is a compact 16 A illuminated modular pushbutton designed for momentary command and remote-control functions with integrated visual indication. Part of the ABB E210 command and signalling range, it combines a pushbutton contact and white LED within a space-efficient DIN-rail device.
The E217-16-10B features one normally open (1NO) contact and one integrated white LED. Its pulse-contact operation provides a momentary electrical command, while the illuminated element offers clear visual indication for control and signalling applications.
Rated at 16 A and 250 V AC, the E217-16-10B uses a 115–250 V AC LED voltage range. At only 9 mm wide, it occupies half a standard module and provides a compact solution for distribution boards and control panels where both momentary operation and visual indication are required.
Key Advantages
- Combines a 16 A momentary pushbutton and LED indication in one device.
- 1NO contact configuration for straightforward pulse-command applications.
- Integrated white LED provides clear visual indication.
- 115–250 V AC LED voltage range suits common low-voltage AC installations.
- Only 9 mm wide for space-efficient DIN-rail installation.
- Suitable for remote control in residential, public, commercial and industrial electrical systems.
Key Features
- ABB E217 / E210 series illuminated modular pushbutton.
- 16 A rated current.
- 1 normally open (1NO) contact.
- 1 integrated white LED.
- 115–250 V AC LED voltage range.
- 250 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- Pulse-contact operation.
- IP20 degree of protection.
- Compact 0.5-module DIN-rail format.
Reliable Momentary Control with White LED Indication
The ABB E217 range combines momentary pushbutton operation with integrated LED signalling. The E217-16-10B uses a 1NO pulse contact for manual command functions together with a white LED, allowing control and visual indication to be incorporated within a single modular device.
Its 16 A rating, 115–250 V AC LED supply range and compact 9 mm width make the E217-16-10B suitable for distribution boards and control panels where DIN-rail space is limited. The integrated design can also reduce the need for a separate indicator when an illuminated pushbutton is required.
Typical Applications
- Remote control of electrical equipment.
- Residential and commercial distribution boards.
- Industrial electrical control panels.
- Momentary command circuits with visual indication.
- Public-building electrical installations.
- DIN-rail-mounted command and signalling assemblies.
