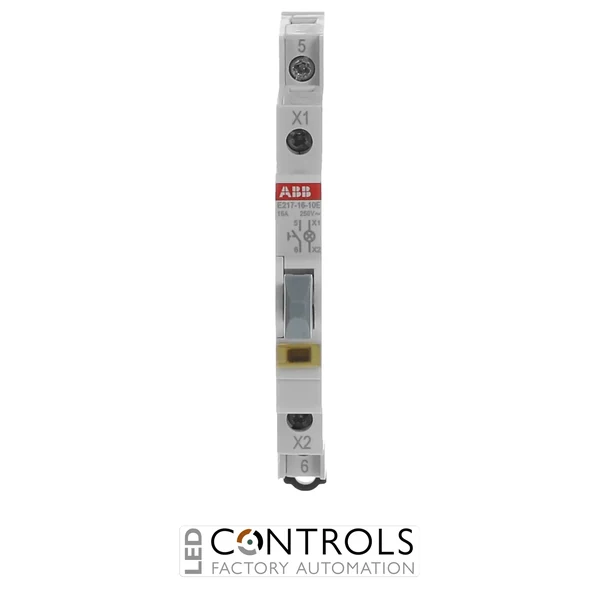

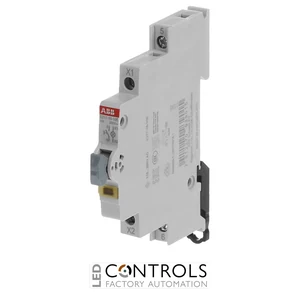

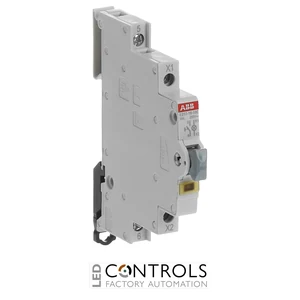

Why Choose the ABB E217-16-10E Illuminated Pushbutton?
The ABB E217-16-10E is a compact illuminated modular pushbutton with 1NO contact and a yellow LED designed for manual command and visual indication functions in electrical distribution boards, control panels and industrial installations. As part of the ABB E217 luminous pushbutton series, it combines momentary switching and clear LED indication within a space-saving DIN rail module.
This pushbutton features a single normally open (1NO) contact with pulse-contact operation and an integrated maintenance-free yellow LED. The combined switching and indication functionality makes it particularly suitable for control circuits where operators require immediate visual confirmation of circuit or equipment status.
With a rated current of 16 A, a rated operational voltage of 250 V AC according to EN and an LED voltage range of 115–250 V AC, the E217-16-10E provides dependable control in compact modular installations. Its narrow 9 mm width occupies only 0.5 module, helping maximise available DIN rail space.
Key Advantages
- Compact illuminated modular pushbutton for control and signalling applications.
- 1NO contact configuration for momentary switching functions.
- Integrated yellow maintenance-free LED provides clear visual indication.
- 16 A rated current for dependable electrical control.
- 115–250 V AC LED voltage range suits common control supplies.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width occupies only 0.5 modular width.
- DIN rail format enables straightforward integration into modular distribution and control equipment.
Key Features
- ABB E217 luminous pushbutton series.
- 1 normally open (NO) contact.
- 16 A rated current.
- 250 V AC rated operational voltage according to EN.
- 115–250 V AC LED voltage range.
- Integrated yellow LED illumination.
- Pulse-contact / monostable pushbutton operation.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- 9 mm module width.
- Operating temperature range of -25 to +55 °C.
- Designed for DIN rail mounting in modular electrical installations.
Reliable Illuminated Control and Signalling
Illuminated pushbuttons such as the ABB E217-16-10E combine a manual control command with integrated visual signalling in a single compact device. Pressing the monostable actuator operates the normally open contact, while the integrated yellow LED provides a clear visual indication suitable for control, status and signalling applications.
The E217 series is designed for compact modular electrical installations. Its narrow DIN rail format enables illuminated control functions to be positioned alongside other modular protection and control devices, helping panel builders create organised, space-efficient and easily identifiable electrical assemblies.
Typical Applications
- Electrical distribution boards and modular enclosures.
- Industrial control panels and switchboards.
- Manual start and command circuits.
- Contactor and relay control circuits.
- Building electrical control systems.
- Machine and equipment control panels.
- Status indication and signalling circuits.
- DIN rail mounted automation and control systems.
