Why Choose the ABB E217-16-10G Illuminated Pushbutton?

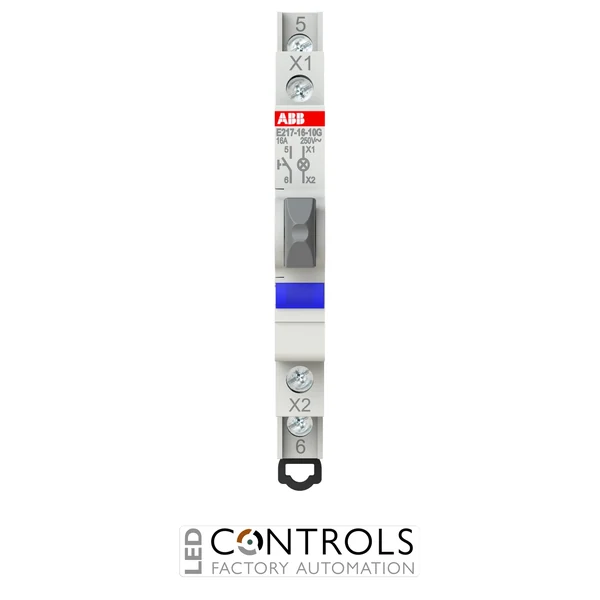

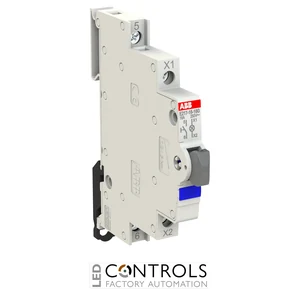

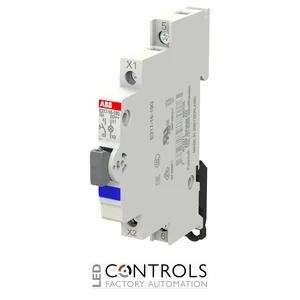

The ABB E217-16-10G is a compact illuminated modular pushbutton with 1NO contact and a blue LED designed for manual control and visual signalling functions in electrical distribution boards, control panels and industrial installations. As part of the ABB E217 luminous pushbutton series, it combines dependable momentary switching with clear LED indication in a space-saving DIN rail format.
This pushbutton features a single normally open (1NO) contact and an integrated maintenance-free blue LED. The combination of manual switching and visual indication makes the E217-16-10G suitable for control circuits where equipment status, operating conditions or command functions need to be clearly identified.
With a rated current of 16 A, a rated operational voltage of 250 V AC and an LED voltage range of 115–250 V AC, the E217-16-10G provides reliable control and signalling for modular electrical installations. Its narrow 9 mm width occupies only 0.5 module, helping maximise available DIN rail space inside distribution and control equipment.
Key Advantages
- Compact illuminated modular pushbutton for control and signalling applications.
- 1NO contact configuration for momentary control functions.
- Integrated blue maintenance-free LED provides clear visual indication.
- 16 A rated current for dependable electrical control.
- 250 V AC rated operational voltage.
- 115–250 V AC LED voltage range for common control supplies.
- Space-saving 9 mm width occupies only 0.5 modular width.
- DIN rail format supports straightforward integration into modular distribution and control equipment.
Key Features
- ABB E217 luminous pushbutton series.
- 1 normally open (NO) contact.
- 16 A rated current.
- 250 V AC rated operational voltage.
- 115–250 V AC LED voltage range.
- Integrated blue LED illumination.
- Maintenance-free LED technology.
- Momentary pushbutton control for command circuits.
- IP20 protection rating.
- 9 mm module width.
- Compact DIN rail mounting format.
Reliable Illuminated Control and Signalling
Illuminated pushbuttons such as the ABB E217-16-10G combine manual command functionality and visual signalling within a single compact modular device. Operating the pushbutton switches the normally open contact, while the integrated blue LED provides an easily recognisable visual indication for control and status functions.
The E217 series is designed for space-efficient modular electrical installations. Its narrow DIN rail format allows illuminated control functions to be installed alongside protection, switching and other control devices, helping panel builders create organised and clearly identifiable electrical assemblies.
Typical Applications
- Electrical distribution boards and modular enclosures.
- Industrial control panels and switchboards.
- Manual command and control circuits.
- Contactor and relay control systems.
- Building electrical control installations.
- Machine and equipment control panels.
- Status indication and signalling circuits.
- DIN rail mounted automation and control systems.
