Why Choose the ABB E217-16-10C220 Illuminated Pushbutton?

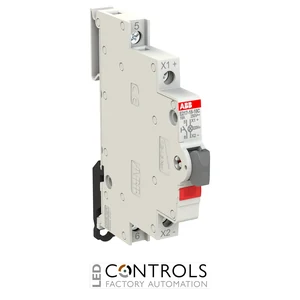

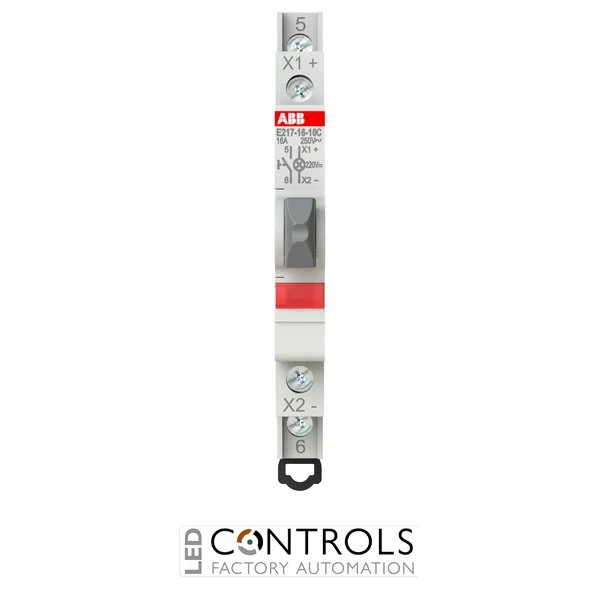

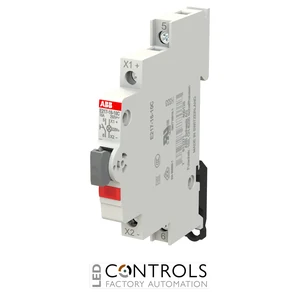

The ABB E217-16-10C220 is a compact 16 A illuminated modular pushbutton designed for momentary command and remote-control functions with integrated visual indication. Part of the ABB E210 command and signalling range, it combines a normally open pushbutton contact and red LED within a space-efficient DIN-rail device.
The E217-16-10C220 features one normally open (1NO) contact and one integrated red LED. Its momentary pushbutton operation provides a temporary electrical command, while the illuminated element gives clear visual signalling for control and indication applications.
The switching contact is rated at 16 A and 250 V AC, while the integrated red LED operates across a 60–220 V DC voltage range. At only 9 mm wide, the E217-16-10C220 occupies half a standard module and provides an efficient solution where both momentary control and visual indication are required.
Key Advantages
- Combines a 16 A momentary pushbutton and visual indication in one compact device.
- 1NO contact configuration for straightforward pulse-command applications.
- Integrated red LED provides clear visual signalling.
- 60–220 V DC LED voltage range suits higher-voltage DC control and indication circuits.
- Only 9 mm wide for space-efficient DIN-rail installation.
- Compact half-module design simplifies integration into distribution and control assemblies.
Key Features
- ABB E217 / E210 series illuminated modular pushbutton.
- 16 A rated current.
- 1 normally open (1NO) contact.
- 1 integrated red LED.
- 60–220 V DC LED voltage range.
- 250 V AC rated switching voltage.
- 50/60 Hz rated frequency.
- 1.50 W power loss.
- IP20 degree of protection.
- Compact 0.5-module DIN-rail format.
Reliable Momentary Control with Red LED Indication
The ABB E217 range combines momentary pushbutton operation with integrated LED signalling. The E217-16-10C220 uses a 1NO contact for manual command functions together with a red LED rated for 60–220 V DC, allowing control and visual indication to be incorporated within a single modular device.
Its 16 A contact rating, compact 9 mm width and dedicated DC LED voltage range make the E217-16-10C220 particularly useful in control panels and distribution assemblies where a higher-voltage DC signalling circuit is required alongside the switching function.
Typical Applications
- Remote control of electrical equipment.
- Industrial electrical control panels.
- Momentary command circuits with visual indication.
- DC signalling and indication circuits.
- Commercial and infrastructure electrical installations.
- DIN-rail-mounted command and signalling assemblies.
