Why Choose the ABB E2171610D220 Pushbutton?

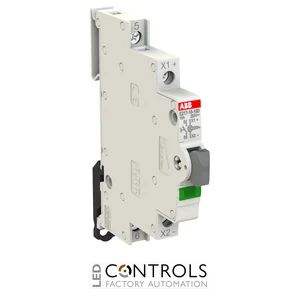

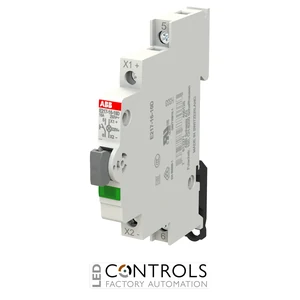

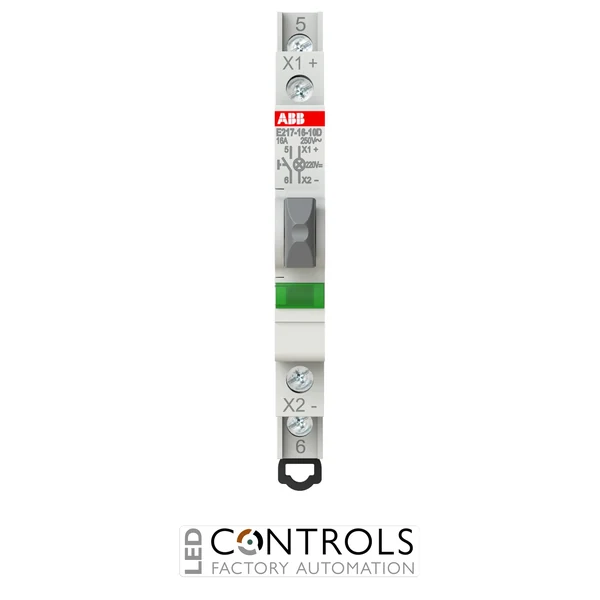

The ABB E2171610D220, product type E217-16-10D220, is a compact modular illuminated pushbutton with an integrated green LED designed for momentary control and visual indication in electrical distribution and control applications. As part of the ABB E210 command and signalling range, it combines pushbutton operation and LED indication within a space-efficient DIN-rail device.
The E217-16-10D220 features one normally open (1NO) contact, a rated current of 16 A and one maintenance-free green LED. This specific D220 variant uses an LED voltage range of 60–220 V DC, making it suitable for DC command and signalling circuits while the switching contact is rated for 250 V AC.
At only 9 mm wide, equivalent to 0.5 modular spacing, the E217-16-10D220 provides both momentary switching and visual indication while conserving DIN-rail space. Its IP20 protection, 50/60 Hz rated frequency and robust ABB construction make it a practical choice for distribution boards, control panels and building-services control systems.
Key Advantages
- Combines momentary pushbutton control and green LED indication in one modular device.
- 16 A rated current for control and switching applications.
- One normally open (1NO) contact for pulse-contact operation.
- Integrated green LED for clear visual indication.
- 60–220 V DC LED voltage range for DC signalling applications.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width equivalent to 0.5 modular spacing.
- IP20 protection rating for installation within suitable electrical enclosures.
Key Features
- ABB E217 / E210 command and signalling range.
- E217-16-10D220 illuminated modular pushbutton.
- 16 A rated current.
- 1-pole, 1NO contact configuration.
- One integrated green LED.
- 60–220 V DC LED voltage range.
- 250 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- 1.50 W power loss.
- IP20 degree of protection.
- Grey operating element.
- Compact 0.5-module, 9 mm-wide construction.
Illuminated pushbuttons such as the ABB E217-16-10D220 combine a momentary electrical command with visual indication in a single modular device. The 1NO pulse contact provides a temporary switching command to connected control equipment, while the integrated green LED provides an immediately visible indication for the associated control or signalling circuit.
The E217-16-10D220 is specifically configured with a 60–220 V DC green LED, distinguishing it from E217 variants designed for other LED supply-voltage ranges. Combined with its 16 A contact rating and narrow 9 mm housing, it provides compact command and signalling functionality for DC control environments.
Typical Applications
- DC command and signalling circuits.
- Remote control of contactors and relays.
- Electrical distribution boards and control panels.
- Building-services control systems.
- Lighting control and indication circuits.
- Industrial auxiliary and automation circuits.
- Equipment status and command functions.
- Applications requiring momentary control with visible green LED indication.
