Why Choose the ABB E217-16-10B48 Illuminated Pushbutton?

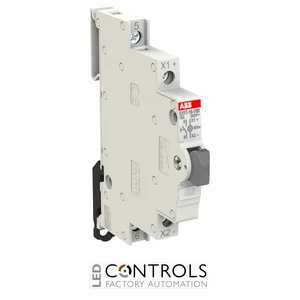

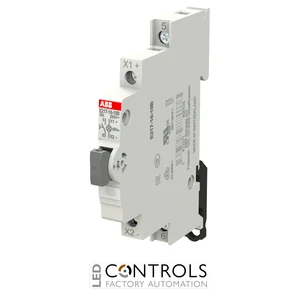

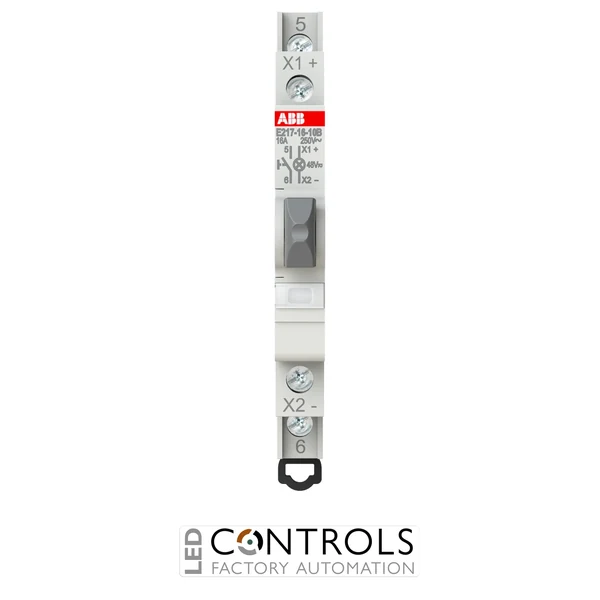

The ABB E217-16-10B48 is a compact illuminated modular pushbutton with 1NO contact and a white LED designed for manual command and visual signalling functions in electrical distribution boards, control panels and industrial installations. As part of the ABB E217 luminous pushbutton series, it combines dependable switching with integrated LED indication in a space-saving DIN rail format.
This pushbutton features a single normally open (1NO) contact and an integrated white LED suitable for 12–48 V AC/DC supplies. Combining a momentary control function and visual indication in one modular device makes the E217-16-10B48 particularly useful where operators require clear confirmation of equipment or circuit status.
With a rated current of 16 A, a rated operational voltage of 250 V AC according to EN and a width of only 9 mm, the E217-16-10B48 provides efficient control and signalling without occupying unnecessary panel space. Its 0.5-module construction enables straightforward integration alongside other modular protection and control devices.
Key Advantages
- Compact illuminated modular pushbutton for control and signalling applications.
- 1NO contact configuration for momentary control commands.
- Integrated white LED provides clear visual indication.
- 12–48 V AC/DC LED voltage range supports both AC and DC control supplies.
- 16 A rated current for dependable electrical switching.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width occupies only 0.5 module.
- DIN rail format supports straightforward integration into modular electrical equipment.
Key Features
- ABB E217 luminous pushbutton series.
- 1 normally open (NO) contact.
- 16 A rated current.
- 250 V AC rated operational voltage according to EN.
- 12–48 V AC/DC LED voltage range.
- Integrated white LED illumination.
- Momentary pushbutton operation for command circuits.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- 9 mm module width.
- Operating temperature range of -25 to +55 °C.
- Designed for DIN rail mounting in modular distribution and control installations.
Reliable Illuminated Control and Signalling
Illuminated pushbuttons such as the ABB E217-16-10B48 combine manual command functionality and visual signalling within a single compact modular device. Operating the pushbutton changes the state of the normally open contact, while the integrated white LED provides a clearly visible indication for equipment status, control functions and signalling circuits.
The E217 series is designed for compact modular electrical installations. Its narrow DIN rail format allows control and indication functions to be installed alongside protection, switching and other control devices, helping panel builders create organised, space-efficient and easily identifiable electrical assemblies.
Typical Applications
- Electrical distribution boards and modular enclosures.
- Industrial control panels and switchboards.
- Low-voltage AC and DC signalling circuits.
- Manual command and control functions.
- Contactor and relay control circuits.
- Building electrical control systems.
- Machine and equipment control panels.
- Status indication and DIN rail automation systems.
