Why Choose the ABB E217-16-10C48 Illuminated Pushbutton?

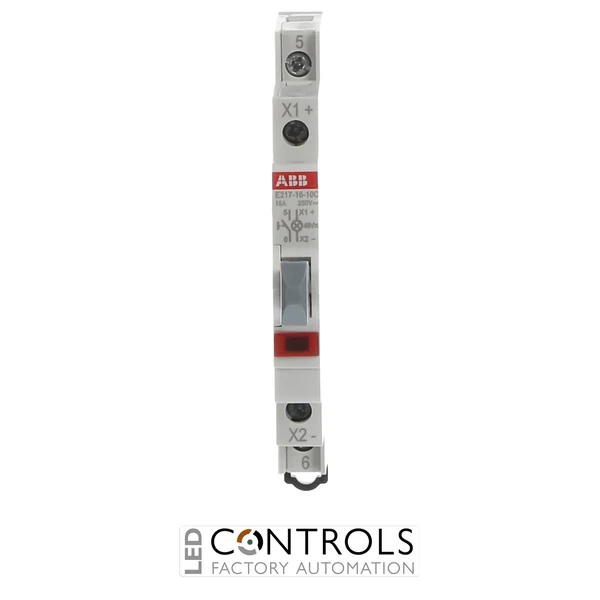

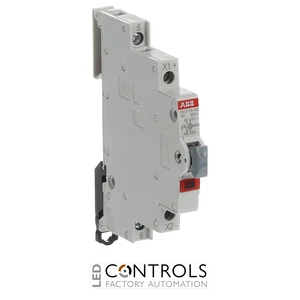

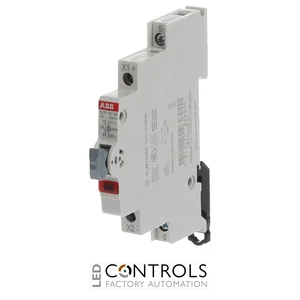

The ABB E217-16-10C48 is a compact 16 A illuminated modular pushbutton designed for momentary command and remote-control functions with integrated visual indication. Part of the ABB E210 command and signalling range, it combines a normally open pushbutton contact and red LED within a space-efficient DIN-rail device.
The E217-16-10C48 features one normally open (1NO) contact and an integrated red LED. Its pulse-contact operation provides a momentary electrical command, while the illuminated element offers clear visual signalling for control and indication applications.
The switching contact is rated at 16 A and 250 V AC, while the integrated red LED is designed for a 12–48 V AC/DC voltage range. At only 9 mm wide, the E217-16-10C48 provides switching and indication within a compact half-module DIN-rail format.
Key Advantages
- Combines a 16 A momentary pushbutton and visual indication in one compact device.
- 1NO contact configuration for straightforward pulse-command applications.
- Integrated red LED provides clear visual signalling.
- 12–48 V AC/DC LED voltage range supports common low-voltage control circuits.
- Only 9 mm wide for space-efficient DIN-rail installation.
- Compact design reduces the need for separate pushbutton and indication components.
Key Features
- ABB E217 / E210 series luminous modular pushbutton.
- 16 A rated current.
- 1 normally open (1NO) contact.
- Integrated red LED.
- 12–48 V AC/DC LED voltage range.
- 250 V AC rated switching voltage.
- Pulse-contact operation.
- 0.72 W power loss.
- Compact 9 mm width.
- DIN-rail mounting for modular electrical assemblies.
Reliable Momentary Control with Low-Voltage Red LED Indication
The ABB E217 range combines momentary pushbutton operation with integrated LED signalling. The E217-16-10C48 uses a 1NO pulse contact for manual command functions together with a red LED rated for 12–48 V AC/DC, allowing control and visual indication to be incorporated within a single modular device.
Its 16 A contact rating, compact 9 mm width and low-voltage AC/DC LED capability make the E217-16-10C48 particularly suitable for control panels and distribution assemblies where clear local indication and momentary operation are required.
Typical Applications
- Remote control of electrical equipment.
- Industrial electrical control panels.
- Momentary command circuits with visual indication.
- 12–48 V AC/DC signalling circuits.
- Commercial and building-control installations.
- DIN-rail-mounted command and signalling assemblies.
