Why Choose the ABB E217-16-10D48 Illuminated Pushbutton?

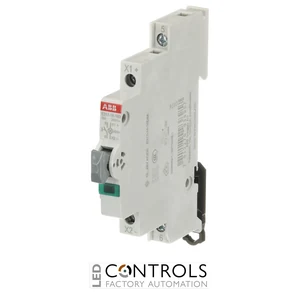

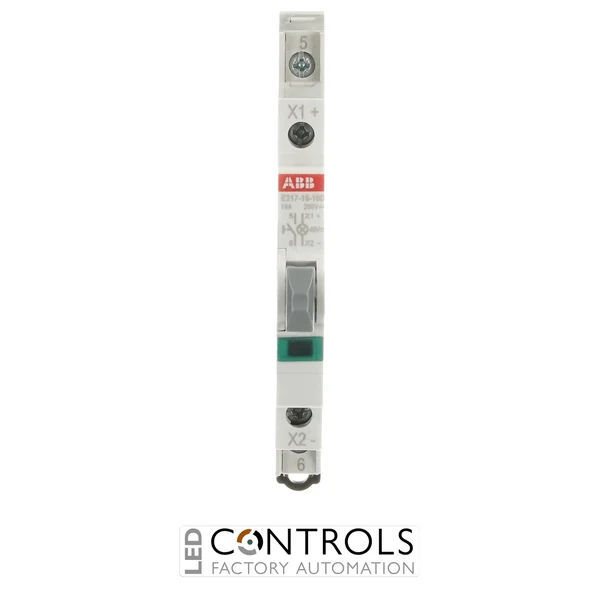

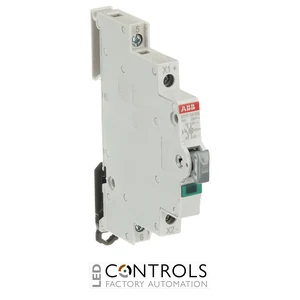

The ABB E217-16-10D48 is a compact 16 A illuminated modular pushbutton designed for momentary command and remote-control functions with integrated visual indication. Part of the ABB E210 command and signalling range, it combines a normally open pushbutton contact and green LED within a space-efficient DIN-rail device.
The E217-16-10D48 features one normally open (1NO) contact and one integrated green LED. Its pulse-contact operation provides a momentary electrical command, while the illuminated element provides clear visual signalling for control and indication applications.
The switching contact is rated at 16 A and 250 V AC according to EN, while the integrated green LED is designed for a 12–48 V AC/DC voltage range. At only 9 mm wide, the E217-16-10D48 occupies half a standard module and provides an efficient solution where both momentary control and visual indication are required.
Key Advantages
- Combines a 16 A momentary pushbutton and visual indication in one compact device.
- 1NO contact configuration for straightforward pulse-command applications.
- Integrated green LED provides clear visual signalling.
- 12–48 V AC/DC LED voltage range supports common low-voltage control circuits.
- Only 9 mm wide for space-efficient DIN-rail installation.
- Compact half-module construction simplifies integration into distribution and control assemblies.
Key Features
- ABB E217 / E210 series illuminated modular pushbutton.
- 16 A rated current.
- 1 normally open (1NO) contact.
- 1 integrated green LED.
- 12–48 V AC/DC LED voltage range.
- 250 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- 0.72 W power loss.
- IP20 degree of protection.
- Compact 0.5-module DIN-rail format.
Reliable Momentary Control with Green LED Indication
The ABB E217 range combines momentary pushbutton operation with integrated LED signalling. The E217-16-10D48 uses a 1NO pulse contact for manual command functions together with a green LED rated for 12–48 V AC/DC, allowing control and visual indication to be incorporated within a single modular device.
Its 16 A contact rating, compact 9 mm width and low-voltage AC/DC LED capability make the E217-16-10D48 particularly suitable for control panels and distribution assemblies where clear local indication and momentary operation are required.
Typical Applications
- Remote control of electrical equipment.
- Industrial electrical control panels.
- Momentary command circuits with visual indication.
- 12–48 V AC/DC signalling circuits.
- Commercial and building-control installations.
- DIN-rail-mounted command and signalling assemblies.
