Why Choose the ABB E2171610G48 Pushbutton?

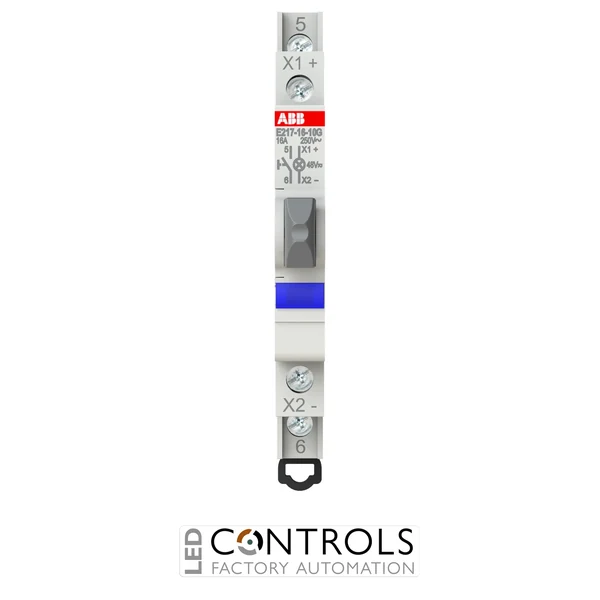

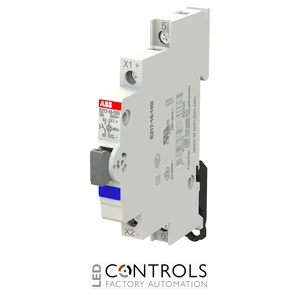

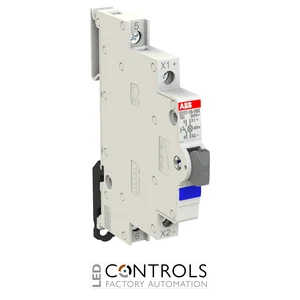

The ABB E2171610G48, product type E217-16-10G48, is a compact modular illuminated pushbutton with an integrated blue LED designed for momentary control and visual indication in electrical distribution and control applications. As part of the ABB E210 command and signalling range, it combines pushbutton operation and LED indication within a space-efficient DIN-rail device.
The E217-16-10G48 features one normally open (1NO) contact, a rated current of 16 A and one maintenance-free blue LED. The LED operates across 12–48 V AC/DC, making this variant particularly suitable for low-voltage command and signalling circuits where clear visual indication is required alongside momentary switching.
With a rated operational voltage of 250 V AC according to EN, power loss of 0.72 W and a compact width of only 9 mm, equivalent to 0.5 modular spacing, the E217-16-10G48 provides control and indication while conserving DIN-rail space. Its IP20 protection and robust modular construction make it suitable for distribution boards, control panels and building-services control systems.
Key Advantages
- Combines momentary pushbutton control and blue LED indication in one modular device.
- 16 A rated current for control and switching applications.
- One normally open (1NO) contact for pulse-contact operation.
- Integrated blue LED for clear visual indication.
- 12–48 V AC/DC LED voltage range for low-voltage signalling circuits.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width equivalent to 0.5 modular spacing.
- IP20 protection rating for installation within suitable electrical enclosures.
Key Features
- ABB E217 / E210 command and signalling range.
- E217-16-10G48 illuminated modular pushbutton.
- 16 A rated current.
- 1-pole, 1NO contact configuration.
- One integrated blue LED.
- 12–48 V AC/DC LED voltage range.
- 250 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- 0.72 W power loss.
- IP20 degree of protection.
- Grey operating element.
- Compact 0.5-module, 9 mm-wide construction.
Illuminated pushbuttons such as the ABB E217-16-10G48 combine a momentary electrical command with visual indication in a single modular device. The 1NO pulse contact provides a temporary switching command to connected control equipment, while the integrated blue LED provides a clearly visible indication of the associated operating condition.
The E217-16-10G48 is specifically configured with a 12–48 V AC/DC blue LED, making it well suited to low-voltage control and signalling circuits. Combined with its 16 A contact rating and narrow 9 mm housing, it provides compact command and signalling functionality while minimising the DIN-rail space required.
Typical Applications
- Low-voltage AC/DC command and signalling circuits.
- Remote control of contactors and relays.
- Electrical distribution boards and control panels.
- Building-services control systems.
- Lighting control and indication circuits.
- Industrial auxiliary and automation circuits.
- Equipment status and command functions.
- Applications requiring momentary control with visible blue LED indication.
