Why Choose the ABB E217-16-01B Illuminated Pushbutton?

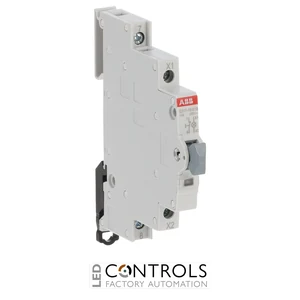

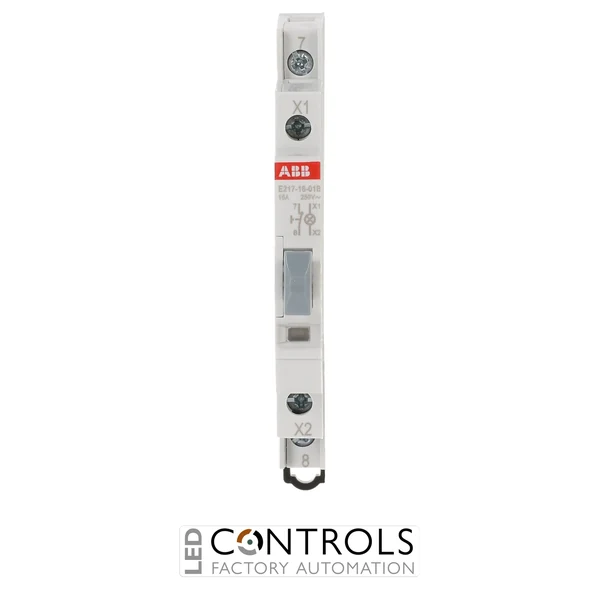

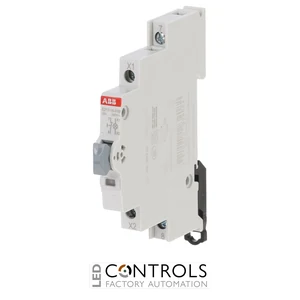

The ABB E217-16-01B is a compact illuminated modular pushbutton with 1NC contact and a white LED designed for manual command and visual signalling functions in electrical distribution boards, control panels and industrial installations. As part of the ABB E217 luminous pushbutton series, it combines dependable momentary switching with integrated LED indication in a space-saving DIN rail format.
This pushbutton features a single normally closed (1NC) contact and an integrated white LED. Its monostable operation makes it suitable for control circuits where pressing the button must temporarily open a normally closed circuit, while the built-in illumination provides a clear visual indication for equipment or circuit status.
With a rated current of 16 A, a rated operational voltage of 250 V AC according to EN and an LED voltage range of 115–250 V AC, the E217-16-01B provides reliable control and signalling in modular electrical installations. Its narrow 9 mm width occupies only 0.5 module, helping maximise available DIN rail space.
Key Advantages
- Compact illuminated modular pushbutton for control and signalling applications.
- 1NC contact configuration for normally closed momentary control circuits.
- Integrated white LED provides clear visual indication.
- 115–250 V AC LED voltage range suits common AC control supplies.
- 16 A rated current for dependable electrical switching.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width occupies only 0.5 module.
- DIN rail format supports straightforward integration into modular distribution and control equipment.
Key Features
- ABB E217 luminous pushbutton series.
- 1 normally closed (NC) contact.
- 16 A rated current.
- 250 V AC rated operational voltage according to EN.
- 115–250 V AC LED voltage range.
- Integrated white LED illumination.
- Monostable pushbutton operation.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- 9 mm module width.
- Operating temperature range of -25 to +55 °C.
- Designed for DIN rail mounting in modular electrical installations.
Reliable Illuminated Control and Signalling
Illuminated pushbuttons such as the ABB E217-16-01B combine manual command functionality and visual signalling within a single compact device. The normally closed contact is closed in its normal state and opens when the monostable pushbutton is operated, making this configuration useful for control functions that require interruption of a circuit when the button is pressed.
The E217 series is designed for compact modular electrical installations. Its integrated LED provides visual feedback while the narrow DIN rail format allows the pushbutton to be installed alongside modular protection, switching and control devices, helping create organised and space-efficient electrical assemblies.
Typical Applications
- Electrical distribution boards and modular enclosures.
- Industrial control panels and switchboards.
- Normally closed command and control circuits.
- Contactor and relay control circuits.
- Building electrical control systems.
- Machine and equipment control panels.
- Status indication and signalling circuits.
- DIN rail mounted automation and control systems.
