Why Choose the ABB E217-16-01D Luminous Pushbutton?

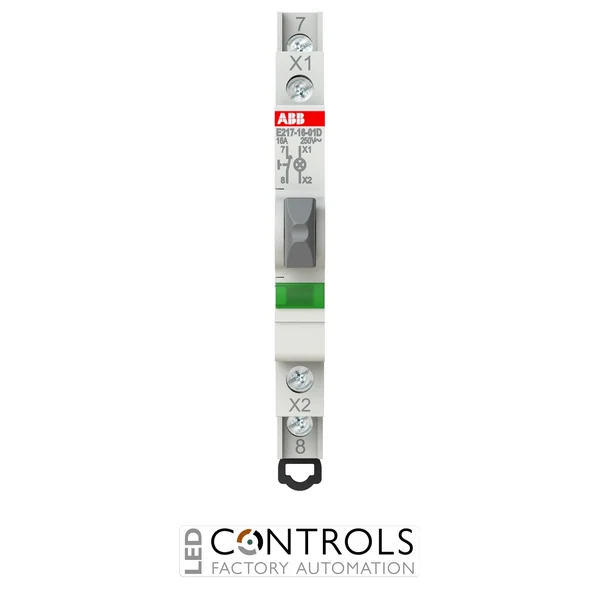

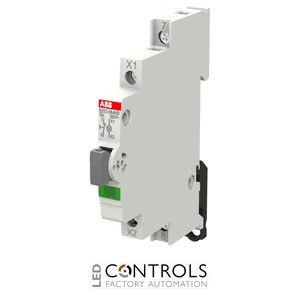

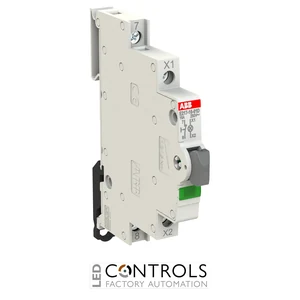

The ABB E217-16-01D is a compact and reliable modular luminous pushbutton with green LED indication designed for command and signalling functions in electrical distribution, control and automation systems. As part of the ABB E210 series, this illuminated pushbutton combines momentary switching with clear visual status indication in a space-saving DIN rail format.
Featuring a 1NC normally closed contact and a rated current of 16 A, the E217-16-01D provides dependable pulse-contact operation for control circuits. Its integrated maintenance-free green LED provides clear visual indication, helping operators quickly identify circuit or equipment status.
The E217-16-01D is rated at 250 V AC, with an LED voltage range of 115–250 V AC. Its narrow 9 mm width, equivalent to half a DIN module, makes it particularly suitable for installations where control-panel space is limited.
Key Advantages
- Compact luminous modular pushbutton for command and signalling applications.
- 1NC normally closed contact for momentary control functions.
- Green integrated LED provides clear visual status indication.
- 16 A rated current and 250 V AC rated operating voltage.
- 115–250 V AC LED voltage range for common control and distribution systems.
- Only 9 mm wide for efficient use of DIN rail space.
Key Features
- ABB E217 luminous pushbutton from the E210 modular control range.
- 1NC contact configuration.
- 16 A rated current.
- 250 V AC rated operating voltage according to EN.
- Green LED illumination.
- 115–250 V AC LED voltage range.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- Compact 0.5-module, 9 mm wide construction.
- Designed for DIN rail-mounted electrical distribution and control equipment.
Reliable Command and Signalling for Electrical Systems
Luminous pushbuttons combine electrical switching and visual indication in a single compact device. The ABB E217-16-01D uses a normally closed momentary contact for control functions while its integrated green LED provides an immediately visible indication of operating or circuit status.
The E217 series is designed for modular electrical installations where dependable operation and efficient use of enclosure space are important. Its narrow DIN rail format makes the E217-16-01D suitable for distribution boards, control panels and automation equipment requiring convenient manual command and status indication.
Typical Applications
- Electrical distribution boards and switchboards.
- Industrial control panels and automation systems.
- Machinery command and signalling circuits.
- Lighting and ventilation control systems.
- Pump and motor control circuits.
- Commercial and residential electrical installations.
