Why Choose the ABB E2171601G Pushbutton?

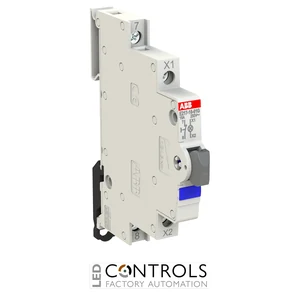

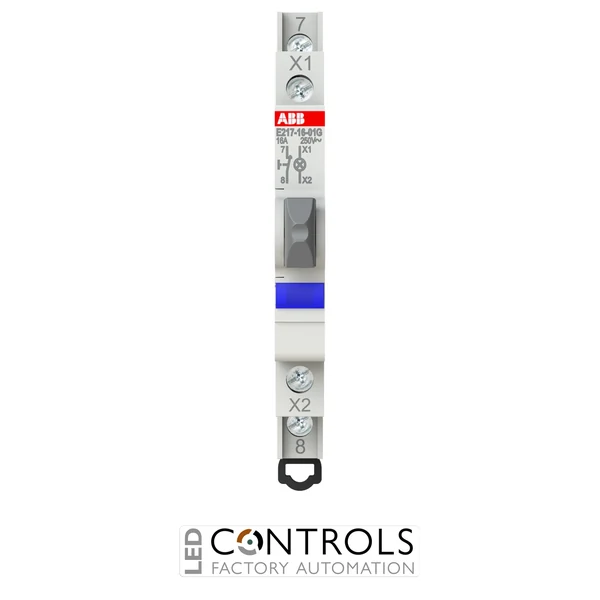

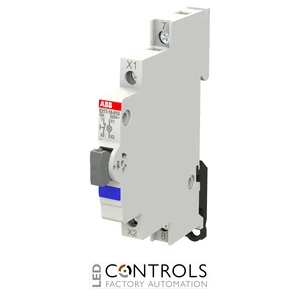

The ABB E2171601G, product type E217-16-01G, is a compact modular illuminated pushbutton with an integrated blue LED designed for momentary control and visual indication in electrical distribution and control applications. Part of the ABB E217 / E210 command and signalling range, it combines a normally closed switching contact and LED indication within a space-efficient DIN-rail device.
The E217-16-01G features one normally closed (1NC) contact, a rated current of 16 A and one maintenance-free blue LED. The LED operates across 115–250 V AC, providing clear visual indication while the pulse-contact mechanism enables momentary control of relays, contactors and auxiliary electrical circuits.
Rated for 250 V AC according to EN and operating at 50/60 Hz, the E217-16-01G is only 9 mm wide, equivalent to 0.5 modular spacing. Its IP20 protection, compact dimensions and integrated blue indication make it particularly suitable for distribution boards and control panels where DIN-rail space is limited.
Key Advantages
- Combines momentary pushbutton control and blue LED indication in one modular device.
- 16 A rated current for control and switching applications.
- One normally closed (1NC) contact for pulse-contact operation.
- Integrated blue LED for clear visual indication.
- 115–250 V AC LED voltage range.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width equivalent to 0.5 modular spacing.
- IP20 protection rating for installation within suitable electrical enclosures.
Key Features
- ABB E217 / E210 command and signalling range.
- E217-16-01G illuminated modular pushbutton.
- 16 A rated current.
- 1-pole, 1NC contact configuration.
- One integrated blue LED.
- 115–250 V AC LED voltage range.
- 250 V AC rated operational voltage according to EN.
- 50/60 Hz rated frequency.
- 1.10 W power loss.
- IP20 degree of protection.
- Grey operating element.
- Compact 0.5-module, 9 mm-wide construction.
Illuminated pushbuttons such as the ABB E217-16-01G combine a momentary electrical command with visual indication in a single modular device. Its 1NC contact is closed in the normal state and opens while the pushbutton is actuated, making it suitable for control functions that require a momentary interruption of the associated circuit.
The integrated 115–250 V AC blue LED provides a clearly visible indication of the relevant operating condition. Combined with the 16 A contact rating and narrow 9 mm housing, the E217-16-01G provides compact command and signalling functionality while conserving valuable DIN-rail space.
Typical Applications
- Momentary control circuits requiring a normally closed contact.
- Remote control of contactors and relays.
- Electrical distribution boards and control panels.
- Lighting control and indication circuits.
- Building-services control systems.
- Industrial auxiliary and automation circuits.
- Equipment status and command functions.
- Applications requiring momentary control with visible blue LED indication.
