Why Choose the ABB E217-16-01B48 Illuminated Pushbutton?

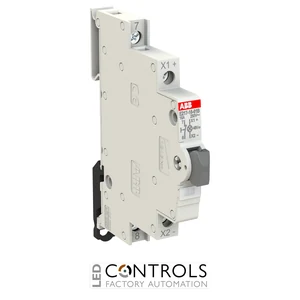

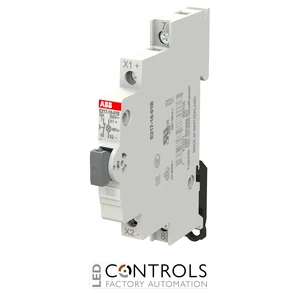

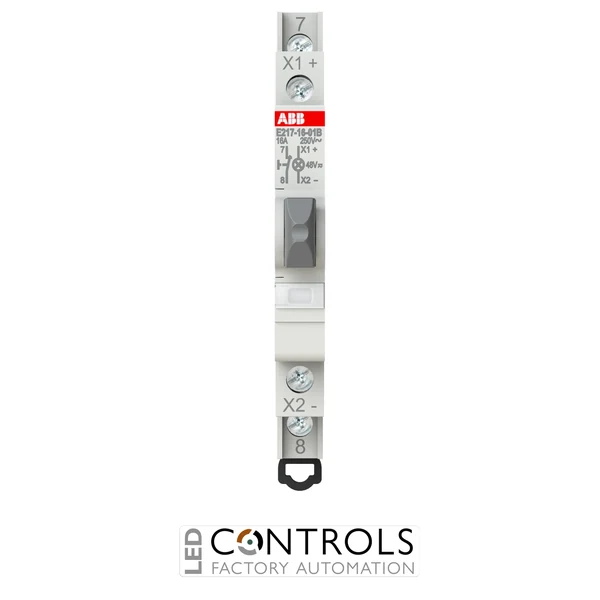

The ABB E217-16-01B48 is a compact illuminated modular pushbutton with 1NC contact and a white LED designed for manual command and visual signalling functions in electrical distribution boards, control panels and industrial installations. As part of the ABB E217 luminous pushbutton series, it combines momentary switching with integrated LED indication in a space-saving DIN rail format.
This pushbutton features a single normally closed (1NC) contact and an integrated white LED designed for a 12–48 V AC/DC voltage range. The normally closed contact opens when the pushbutton is operated, making the E217-16-01B48 suitable for control circuits requiring momentary interruption together with clear visual status indication.
With a rated current of 16 A, a rated operational voltage of 250 V AC according to EN and a compact width of only 9 mm, the E217-16-01B48 provides dependable control and signalling while occupying only 0.5 module of DIN rail space. Its low-voltage AC/DC LED supply makes it particularly suitable for modern control, automation and building electrical systems.
Key Advantages
- Compact illuminated modular pushbutton for control and signalling applications.
- 1NC contact configuration for normally closed momentary control circuits.
- Integrated white LED provides clear visual indication.
- 12–48 V AC/DC LED voltage range supports both AC and DC control supplies.
- 16 A rated current for dependable electrical switching.
- 250 V AC rated operational voltage according to EN.
- Space-saving 9 mm width occupies only 0.5 module.
- DIN rail format supports straightforward integration into modular distribution and control equipment.
Key Features
- ABB E217 luminous pushbutton series.
- 1 normally closed (NC) contact.
- 16 A rated current.
- 250 V AC rated operational voltage according to EN.
- 12–48 V AC/DC LED voltage range.
- Integrated white LED illumination.
- Momentary pushbutton operation for command circuits.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- 9 mm module width.
- Operating temperature range of -25 to +55 °C.
- DIN rail mounting for compact modular electrical installations.
Reliable Illuminated Control and Signalling
Illuminated pushbuttons such as the ABB E217-16-01B48 combine manual command functionality and visual signalling within a single compact modular device. The normally closed contact remains closed in its normal state and opens when the pushbutton is operated, providing a practical switching arrangement for control functions requiring momentary circuit interruption.
The E217 series is designed for compact modular electrical installations. Its integrated white LED provides clear visual feedback from a 12–48 V AC/DC supply, while the narrow DIN rail format allows the pushbutton to be installed alongside modular protection, switching and control devices for organised and space-efficient panel construction.
Typical Applications
- Electrical distribution boards and modular enclosures.
- Industrial control panels and switchboards.
- Low-voltage AC and DC control circuits.
- Normally closed command and control circuits.
- Contactor and relay control circuits.
- Building electrical control systems.
- Machine and equipment control panels.
- Status indication and DIN rail automation systems.
