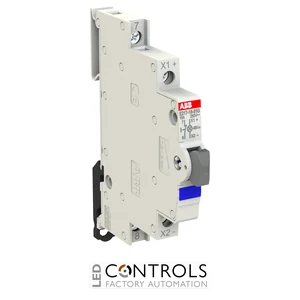

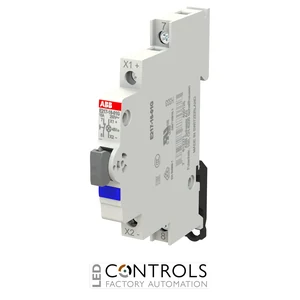

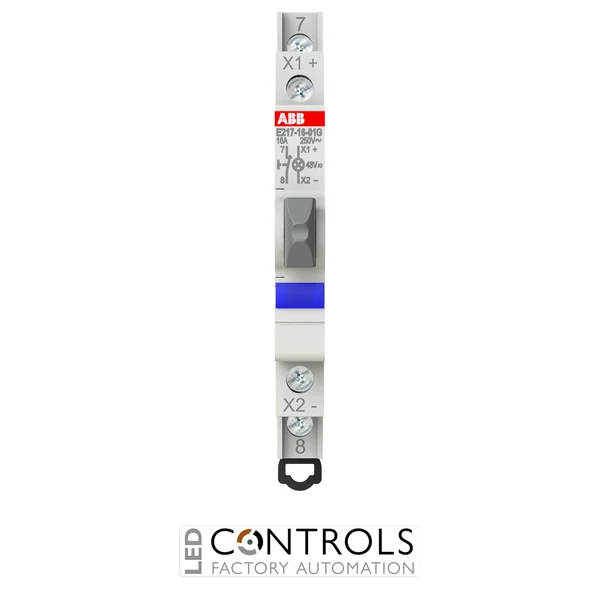

Why Choose the ABB E217-16-01G48 Luminous Pushbutton?
The ABB E217-16-01G48 is a compact and reliable modular luminous pushbutton with blue LED indication designed for command and signalling functions in electrical distribution, control and automation systems. As part of the ABB E210 command and signalling range, it combines momentary switching with clear visual indication in a space-saving DIN rail format.
Featuring a 1NC normally closed contact and a rated current of 16 A, the E217-16-01G48 provides dependable pulse-contact operation for electrical control circuits. Its integrated blue LED provides clear visual indication, helping operators quickly identify circuit or equipment status.
The E217-16-01G48 has a rated operating voltage of 250 V AC according to EN and an LED voltage range of 12–48 V AC/DC. Its narrow 9 mm width, equivalent to 0.5 DIN module, makes it particularly suitable for installations where control-panel space is limited.
Key Advantages
- Compact luminous modular pushbutton for command and signalling applications.
- 1NC normally closed contact for momentary control functions.
- Blue integrated LED provides clear visual status indication.
- 16 A rated current for electrical control applications.
- 250 V AC rated operating voltage according to EN.
- 12–48 V AC/DC LED voltage range for low-voltage signalling circuits.
- Only 9 mm wide for efficient use of DIN rail space.
Key Features
- ABB E217 luminous pushbutton from the E210 command and signalling range.
- 1NC contact configuration.
- 16 A rated current.
- 250 V AC rated operating voltage according to EN.
- Blue LED illumination.
- 12–48 V AC/DC LED voltage range.
- 0.72 W power loss.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- 0.5-module, 9 mm wide compact construction.
Reliable Command and Signalling for Electrical Systems
Luminous pushbuttons combine electrical switching and visual indication in a single compact device. The ABB E217-16-01G48 uses a normally closed momentary contact for control functions while its integrated blue LED provides an immediately visible indication of operating or circuit status.
The ABB E210 command and signalling range is designed for modular electrical installations where dependable operation and efficient use of enclosure space are important. The narrow DIN rail format makes the E217-16-01G48 suitable for distribution boards, control panels and automation equipment requiring convenient manual command and visual indication.
Typical Applications
- Electrical distribution boards and switchboards.
- Industrial control panels and automation systems.
- Machinery command and signalling circuits.
- Low-voltage AC/DC indication and control circuits.
- Pump and motor control systems.
- Commercial and industrial electrical installations.
