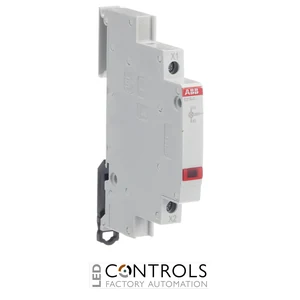

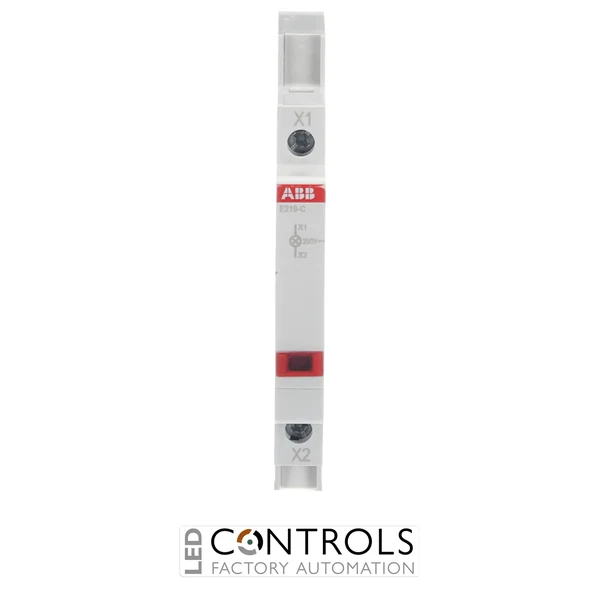

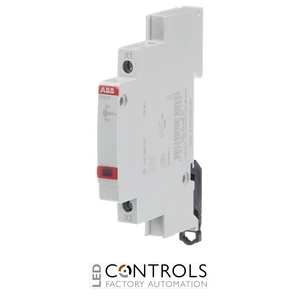

Why Choose the ABB E219-C Indicator Light?
The ABB E219-C is a compact DIN rail indicator light with a red LED designed to provide clear visual status indication in electrical distribution boards, control panels and modular installations. Part of ABB's E219 indicator-light range, it provides a dedicated signalling function without requiring a separate panel-mounted pilot light.
The E219-C uses an integrated red LED with an operating voltage range of 115–250 V AC. Red indication is readily distinguishable in electrical panels, making the device suitable for applications where an operating state, warning condition or other circuit status needs to be communicated visually.
At only 9 mm wide, equivalent to 0.5 module, the E219-C provides signalling while conserving valuable DIN rail space. Its LED technology has a power loss of just 0.47 W, supporting efficient continuous status indication in distribution and control equipment.
Key Advantages
- Integrated red LED provides clear visual status indication.
- 115–250 V AC LED voltage range suits common AC electrical systems.
- Compact 9 mm width requires only 0.5 module of DIN rail space.
- Low 0.47 W power loss supports efficient continuous indication.
- IP20 protection for installation inside suitable electrical enclosures.
- DIN rail mounting enables convenient integration with other modular devices.
- LED technology avoids the routine lamp replacement associated with traditional filament indicators.
- ABB modular construction supports organised distribution-board and control-panel layouts.
Key Features
- ABB E219 series single indicator light.
- Integrated red LED.
- 115–250 V AC LED voltage range.
- 0.47 W power loss.
- 9 mm width.
- Compact 0.5-module construction.
- IP20 protection rating.
- Operating temperature range of -25 to +55 °C.
- Screw-terminal electrical connection.
- Designed for DIN rail mounting.
- Suitable for visual indication of operating and circuit states.
Reliable Visual Status Indication
The ABB E219-C provides a straightforward way to add visual indication to a modular electrical assembly. Its integrated red LED operates directly across a 115–250 V AC range, allowing the indicator to communicate circuit or equipment status without a separate lamp assembly.
The narrow 9 mm DIN rail housing makes the E219-C particularly useful where enclosure space is limited. With low LED power consumption and no mechanical switching contacts, it is designed specifically as a signalling device for distribution boards, control systems and other electrical installations requiring readily visible status information.
Typical Applications
- Electrical distribution boards.
- Industrial control panels and switchboards.
- Equipment operating-status indication.
- Warning and attention signalling.
- Phase and supply presence indication.
- Building electrical systems.
- Machine control enclosures.
- DIN rail automation and control assemblies.
