Why Choose the ABB E219C48 Indicator Light?

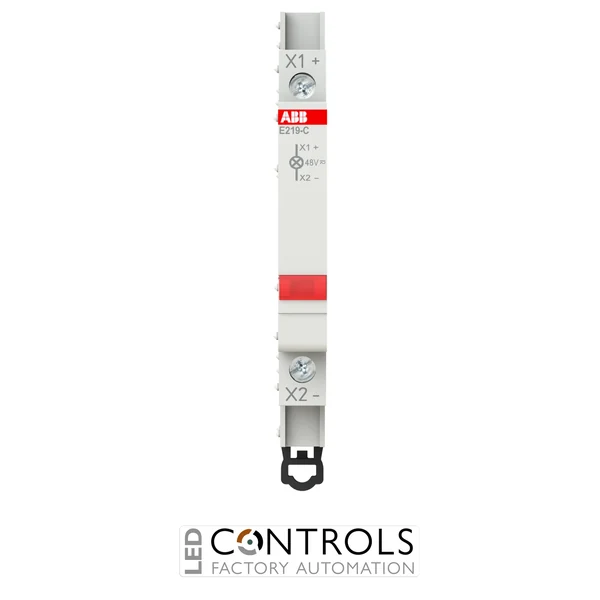

The ABB E219C48, product type E219-C48, is a compact DIN-rail indicator light with red LED illumination designed to provide clear visual indication of electrical operating conditions. Part of the ABB E219 / E210 command and signalling range, it provides a space-efficient signalling solution for distribution boards, control panels and electrical installations.
The E219-C48 operates across a 12–48 V AC/DC voltage range and uses two red LEDs for reliable visual signalling. This low-voltage AC/DC capability makes it particularly suitable for control, automation and auxiliary circuits where red indication is required for alarms, warnings, equipment states or other application-defined conditions.
At only 9 mm wide, equivalent to 0.5 modular spacing, the E219-C48 occupies minimal DIN-rail space. Its 0.40 W power loss, maintenance-free LED technology and compact modular construction make it well suited to continuous status indication in commercial, industrial and building-services electrical systems.
Key Advantages
- Clear red LED indication for highly visible electrical status signalling.
- Flexible 12–48 V AC/DC voltage range for low-voltage circuits.
- Two integrated LEDs for visual indication.
- Low 0.40 W power loss for efficient continuous operation.
- Compact 9 mm width equivalent to 0.5 modular spacing.
- Maintenance-free LED technology with a long service life.
- Suitable for operating-state, warning and phase-condition indication.
- Designed for straightforward DIN-rail installation in modular electrical equipment.
Key Features
- ABB E219 / E210 command and signalling range.
- E219-C48 modular indicator light.
- Red LED visual indication.
- Two LEDs integrated into the device.
- 12–48 V AC/DC voltage range.
- 48 V rated voltage.
- 250 V rated insulation voltage.
- 4 kV rated impulse withstand voltage.
- 50/60 Hz rated frequency.
- 0.40 W power loss.
- LED service life up to 50,000 hours.
- Compact 0.5-module, 9 mm-wide construction.
Low-Voltage Red LED Status Indication
ABB E219 indicator lights provide clear visual signalling of electrical equipment operating conditions from a central location. The red LEDs in the E219-C48 provide an easily recognisable indication that can be assigned to alarms, warnings, equipment states, phase conditions or other functions according to the requirements of the installation.
The 12–48 V AC/DC operating range makes the E219-C48 particularly suitable for low-voltage control and auxiliary circuits. Combined with maintenance-free LED technology, a service life of up to 50,000 hours and a housing only 9 mm wide, it provides efficient visual signalling while conserving valuable DIN-rail space.
Typical Applications
- Low-voltage AC/DC command and signalling circuits.
- Electrical distribution boards and control panels.
- Alarm and warning indication.
- Operating-state indication for electrical equipment.
- Phase-presence and phase-loss signalling.
- Industrial automation and auxiliary circuits.
- Building-services control systems.
- Centralised visual status indication.
