Why Choose the ABB E219-2CD Indicator Light?

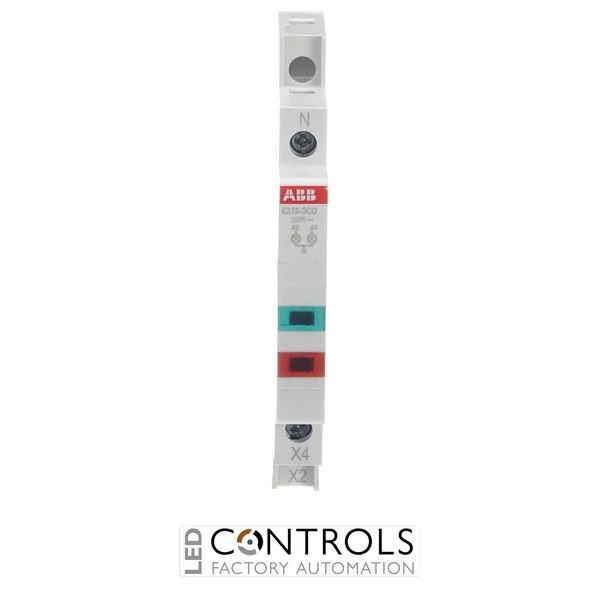

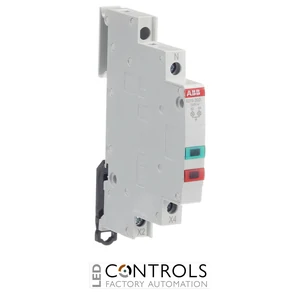

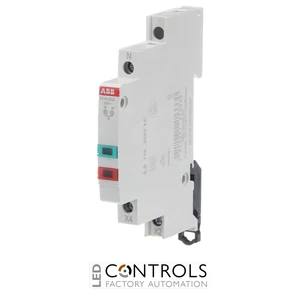

The ABB E219-2CD is a compact dual-LED DIN rail indicator light designed for clear visual signalling in electrical distribution boards, switchboards and control panels. Part of ABB's E219 indicator-light range, it combines green and red LED indicators within a single space-saving modular device.
The E219-2CD provides two distinct LED indications and is designed for a 115–250 V AC voltage range, with a rated operational voltage of 115–230 V AC. The contrasting green and red LEDs allow two electrical or operating states to be identified readily, making the device useful for status, supply and condition indication.
Despite incorporating two LEDs, the E219-2CD is only 9 mm wide, equivalent to 0.5 module. With a power loss of 0.8 W, DIN rail mounting and compact 9 × 85 × 68 mm dimensions, it provides efficient multi-colour signalling without occupying the space required by separate indicator modules.
Key Advantages
- Combines two LED indicators within one compact modular device.
- Green and red LEDs provide clearly differentiated visual signalling.
- 115–250 V AC voltage range suits common AC electrical systems.
- Rated operational voltage of 115–230 V AC.
- Compact 9 mm width occupies only 0.5 module.
- Low 0.8 W power loss supports efficient LED indication.
- DIN rail mounting simplifies integration into modular electrical assemblies.
- Two-colour indication reduces the need for separate signalling devices.
Key Features
- ABB E219 series multi-indicator light.
- Two integrated LED indicators.
- Green and red LED colours.
- 115–250 V AC voltage range.
- 115–230 V AC rated operational voltage.
- 230 V rated voltage.
- 250 V rated insulation voltage.
- 4 kV rated impulse withstand voltage.
- 50/60 Hz rated frequency.
- 0.8 W power loss.
- 9 mm width and 0.5-module construction.
- Operating temperature range of -25 to +55 °C.
Clear Dual-Colour Status Indication
The ABB E219-2CD integrates green and red LEDs into one narrow modular housing, allowing two clearly distinguishable electrical states to be displayed without installing two separate indicator modules. This makes it suitable for applications where operators need an immediate visual distinction between different supply, equipment or process conditions.
With a width of only 9 mm, the E219-2CD provides dual-colour indication while conserving valuable DIN rail space. Its 115–250 V AC voltage range, 50/60 Hz frequency rating and 4 kV impulse withstand rating make it a practical modular signalling device for distribution boards and industrial control systems.
Typical Applications
- Electrical distribution boards.
- Industrial control panels and switchboards.
- Equipment operating-status indication.
- Two-state visual signalling.
- Supply and phase-status indication.
- Building electrical distribution systems.
- Machine and equipment control enclosures.
- DIN rail automation and signalling assemblies.
