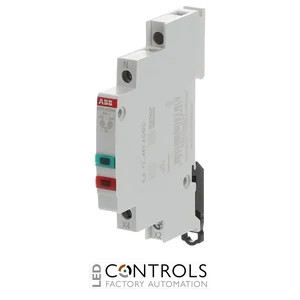

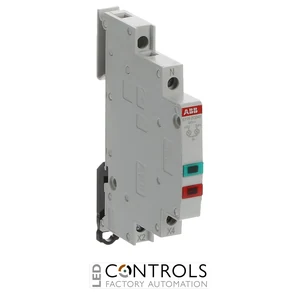

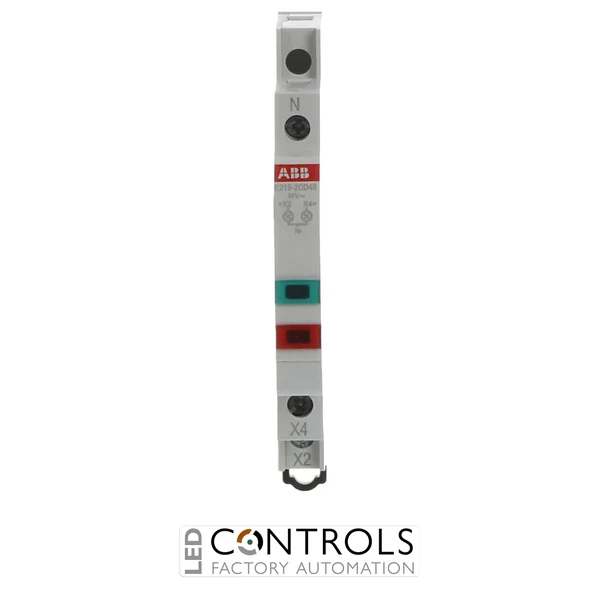

Why Choose the ABB E219-2CD48 Indicator Light?
The ABB E219-2CD48 is a compact dual LED indicator light with green and red indication designed for clear visualisation of operating states in electrical distribution, control and automation systems. As part of the ABB E210 command and signalling range, it combines two distinct status indications within a single space-saving DIN rail device.
Featuring two integrated LEDs, one green and one red, the E219-2CD48 can provide clearly differentiated visual indication of conditions such as equipment ON and OFF states. When controlled through suitable auxiliary contacts, the corresponding LED can indicate the current operating state of connected equipment.
The E219-2CD48 operates across a 12–48 V AC/DC voltage range and has a rated current of 16 A. With a width of only 9 mm, equivalent to 0.5 DIN module, it provides dual-colour indication while conserving valuable space in distribution boards and control panels.
Key Advantages
- Dual green/red LED indication within a single compact device.
- Ideal for visualising ON/OFF and alternative operating states.
- 12–48 V AC/DC voltage range for low-voltage signalling circuits.
- 16 A rated current.
- Low 0.8 W power loss.
- Only 9 mm wide for efficient use of DIN rail space.
- Suitable for residential, commercial and industrial electrical installations.
Key Features
- ABB E219 multi-indicator light from the E210 command and signalling range.
- Two integrated LEDs.
- Green and red LED colours.
- 12–48 V AC/DC voltage range.
- 48 V rated voltage.
- 16 A rated current.
- 250 V rated insulation voltage.
- 4 kV rated impulse withstand voltage.
- 0.8 W power loss.
- IP20 protection rating.
- 0.5-module, 9 mm wide compact construction.
Clear Dual-Colour Status Indication
Dual LED indicator lights allow two operating conditions to be displayed from a single compact device. The ABB E219-2CD48 combines green and red LEDs so that different equipment states can be distinguished immediately, making it particularly useful for ON/OFF status indication and similar control applications.
The ABB E219 dual-indicator design provides this functionality within a width of only 9 mm. When connected through suitable auxiliary contacts, the green and red LEDs can be used to show the corresponding state of a load, contactor or other controlled equipment without requiring two separate indicator modules.
Typical Applications
- ON/OFF equipment status indication.
- Electrical distribution boards and switchboards.
- Industrial control panels and automation systems.
- Motor and contactor status indication.
- Building electrical control systems.
- Commercial and residential distribution equipment.
