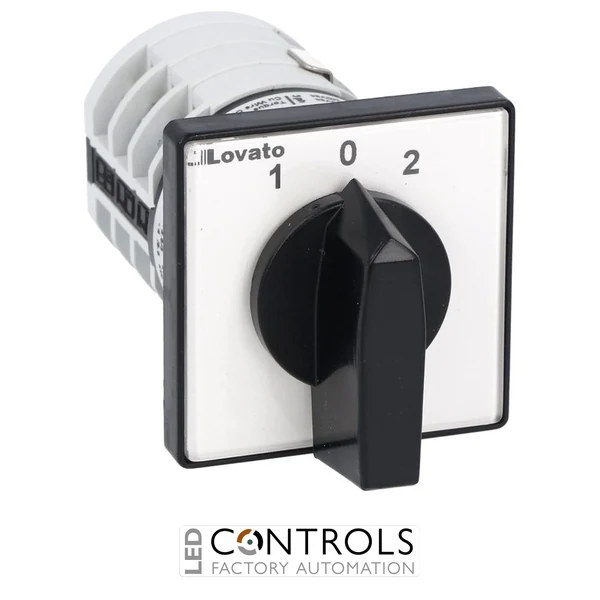

7GN1226U - 3POS CAM SWITCHES WITH RETURN TO 0 FRONT

7GN1226U – 3POS CAM SWITCHES WITH RETURN TO 0 FRONT

The Lovato 7GN1226U is a rotary cam motor starting switch designed for dependable 3-phase motor reversing with spring return action.

SKU: 7GN1226UMPN: 7GN1226U
Price
List Price £34.57 ex VAT
Your Price (ex VAT)
£34.57
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £34.57
Trade pricing is personalised to your account

Manufacturer Lead Time

£34.57

Lovato 7GN1226U Rotary Cam Switch GN Series 3 Phase Motor Reversing Switch With Spring Return 16A

Lovato 7GN1226U Rotary Cam Switch GN Series 3 Phase Motor Reversing Switch With Spring Return 16A

The Lovato Electric 7GN1226U is a professional GN series rotary cam switch designed for three-phase motor reversing applications with spring return to the 0 position. Featuring a 3 phase reversing switch configuration, 16A rated current, front mounting design, black operating handle and 48x48mm front plate, this genuine Lovato component provides reliable manual forward and reverse motor control for industrial machinery, automation systems and electrical panels.

Why Choose the Lovato Electric 7GN1226U?

The Lovato 7GN1226U provides dependable manual motor direction control using a robust rotary cam mechanism with spring return functionality. Its GN series construction, compact front mounting format and reliable switching contacts make it suitable for industrial installations requiring controlled reversing operation and automatic return to the OFF position.

Product Code: Lovato Electric 7GN1226U

Key Benefits

  • Genuine Lovato Electric product: Designed for professional industrial motor control applications.
  • 3 phase motor reversing function: Provides manual forward and reverse switching control.
  • Spring return to zero: Automatically returns to the OFF position when released.
  • 16A rated current: Suitable for industrial motor switching applications.
  • Front mounting design: Ideal for control panels with 48x48mm front plate installation.
  • Black operating handle: Provides clear and simple manual operation.

Compatibility

The Lovato Electric 7GN1226U is designed for use in industrial machinery, motor control panels, automation equipment and electrical installations requiring a three-phase motor reversing switch with spring return operation.

Applications

  • Three-phase motor reversing control
  • Industrial machinery operation
  • Momentary forward/reverse motor control
  • Automation equipment
  • Electrical control panels
  • OEM machine installations

Supplied as a genuine Lovato Electric 7GN1226U rotary cam switch suitable for professional industrial installation and maintenance applications.

Technical Specifications

Tick the specs you need, then view products that match.

Operation 3 positions
Device Type Cam Switch
Product Series Lovato 7GN
Manufacturer Lovato Electric
Model 7GN1226U
Product Type Rotary cam switch
Series GN / 7GN
Application 3 phase motor reversing switch with spring return
Switching Diagram 26 - 3 phase motor reversing switch with spring return
Number of Elements 3
Mounting Type Front mounting
Handle Type Black handle
Front Plate Size 48 x 48mm
Rated Thermal Current Ith 16A
UL/CSA Rated Current 15A
Rated Insulation Voltage Ui 690V AC
Rated Impulse Withstand Voltage Uimp 6kV
Rated Operational Voltage 480V AC
Return Function Spring return to 0 position
Number of Positions 3
Protection Rating IP40 front protection
Terminal Protection IP00
Terminal Type Screw terminals
Mechanical Life 3 x 10⁶ operations
Operating Temperature -25°C to +55°C
Storage Temperature -40°C to +70°C
Weight 100g
EAN 3850144004313
HS Code 85365080
IP Rating IP40

Frequently Asked Questions

Is this the correct part if I need a Lovato 7GN1226U?

Yes. This product is the genuine Lovato Electric 7GN1226U GN series rotary cam switch designed for three-phase motor reversing applications with spring return operation.

What is the Lovato 7GN1226U used for?

The 7GN1226U is used for manual forward and reverse control of three-phase motors where the switch returns to the OFF position after operation.

What current rating does the Lovato 7GN1226U have?

The Lovato 7GN1226U has a conventional free air thermal current rating of 16A.

What mounting type does the 7GN1226U use?

The Lovato 7GN1226U uses front mounting with a black handle and 48x48mm front plate.
