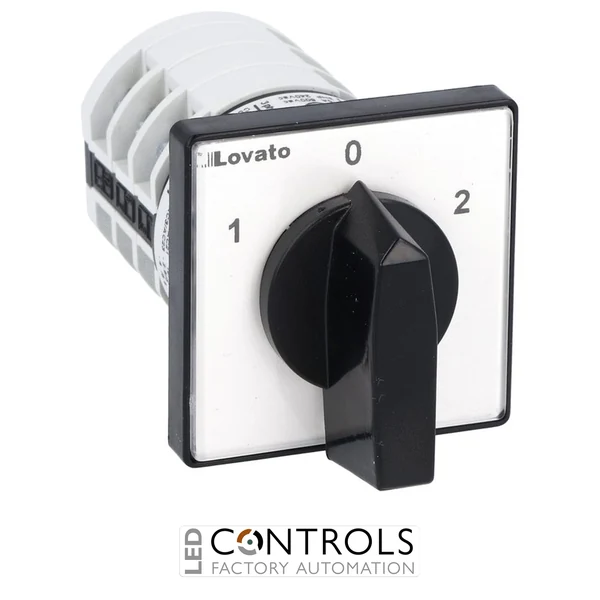

7GN1253U - 3P 3POS SWITCH GN1253U 48X48 FRONT MOUNT

7GN1253U – 3P 3POS SWITCH GN1253U 48X48 FRONT MOUNT

Lovato’s 7GN1253U rotary cam changeover switch delivers reliable 3-pole, 16A control in a compact footprint.

SKU: 7GN1253UMPN: 7GN1253U
Price
List Price £37.72 ex VAT
Your Price (ex VAT)
£37.72
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £37.72
Trade pricing is personalised to your account

Manufacturer Lead Time

£37.72

Lovato 7GN1253U Rotary Cam Switch 3 Pole 16A Two-Speed Motor Starting Switch Front Mounting

Product Overview

The Lovato Electric 7GN1253U is a 7GN series rotary cam switch designed for two-speed motor starting applications using separate windings. This 3-pole changeover switch provides a 16A conventional free air thermal current rating, 1-0-2 switching operation, front mounting with a black operating handle, and a 48x48mm front plate. It is ideal for industrial motor control panels, machinery, and automation applications requiring manual speed selection.

Designed for reliable industrial operation, the Lovato 7GN1253U features a compact rotary cam mechanism with a round-shaped contact block, IP40 front protection, and compliance with IEC/EN and UL standards. The switch is suitable for controlling two-speed motors with separate windings in electrical control systems.

Key Features

  • Manufacturer: Lovato Electric
  • Series: 7GN Rotary Cam Switch
  • Product Type: Rotary cam changeover switch
  • Application: Two-speed motor starting with separate windings
  • Number of Poles: 3 poles
  • Rated Thermal Current (Ith): 16A
  • Mounting Type: Front mounting
  • Handle Type: Black operating handle
  • Front Plate Size: 48x48mm
  • Switching Diagram: Scheme 53
  • Positions: 1-0-2
  • Front Protection Rating: IP40

Applications

The Lovato 7GN1253U is suitable for industrial machinery, fans, pumps, ventilation systems, machine tools, and automation equipment requiring manual control of two-speed motors with separate windings.

Why Choose Lovato 7GN1253U?

The Lovato 7GN1253U delivers reliable manual motor speed control in a compact panel-mounted format. Its durable rotary cam construction, 16A current rating, 3-pole design, and industrial certifications make it a dependable choice for OEM manufacturers, electrical panel builders, and maintenance professionals.

Technical Specifications

Tick the specs you need, then view products that match.

Operation 3 positions
Device Type Cam Switch
Product Series Lovato 7GN
Specification Value Part Number 7GN1253U
Product Type Rotary Cam Changeover Switch
Switching Diagram 53 - 3 Pole Changeover Switch for Two-Speed Motor Starting
Rated Thermal Current 16A IEC/EN
UL/CSA Thermal Current 15A
Rated Insulation Voltage 690V IEC/EN
UL/CSA Insulation Voltage 600V
Rated Impulse Withstand Voltage 6kV
Number of Positions 3 (1-0-2)
Number of Elements 3
Mechanical Rotation Angle 60°
Front Protection IP40
Weight 107.3g
EAN 3850144002333
HS Code 85365080

Frequently Asked Questions

What is the Lovato 7GN1253U used for?

The Lovato 7GN1253U is used for manually controlling two-speed motors with separate windings in industrial electrical applications.

How many poles does the Lovato 7GN1253U have?

The Lovato 7GN1253U is a 3-pole rotary cam changeover switch rated at 16A.

What switching configuration does the Lovato 7GN1253U use?

The Lovato 7GN1253U uses a 1-0-2 switching configuration with three stable positions for two-speed motor control.

What type of mounting does the Lovato 7GN1253U use?

The Lovato 7GN1253U is designed for front mounting with a black handle and 48x48mm front plate.
