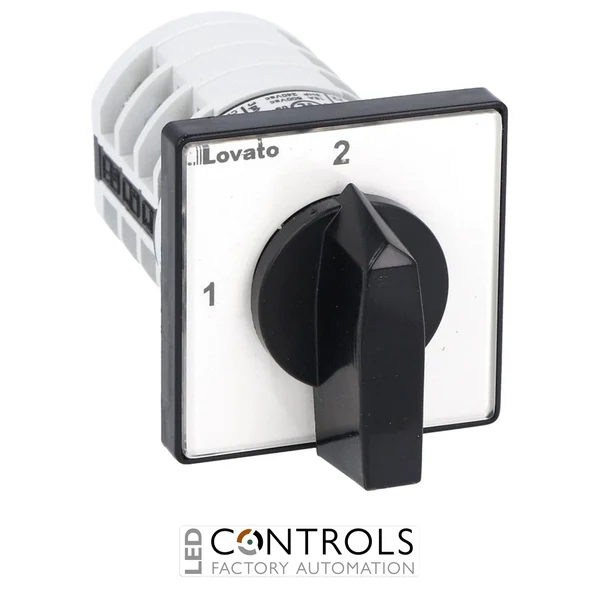

7GN1256U - 3P 2POS SWITCH GN1256U 48X48 FRONT MOUNT

7GN1256U – 3P 2POS SWITCH GN1256U 48X48 FRONT MOUNT

Lovato’s 7GN1256U changeover switch delivers dependable 3-pole switching in a compact, panel-friendly format.

SKU: 7GN1256UMPN: 7GN1256U
Price
List Price £37.72 ex VAT
Your Price (ex VAT)
£37.72
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £37.72
Trade pricing is personalised to your account

Manufacturer Lead Time

£37.72

Lovato 7GN1256U Rotary Cam Switch 3 Pole 16A Changeover Switch Without OFF Position Front Mounting

Product Overview

The Lovato Electric 7GN1256U is a 7GN series rotary cam switch designed for manual changeover switching applications where an OFF position is not required. This 3-pole changeover switch features a 16A conventional free air thermal current rating, switching diagram 56, front mounting with a black operating handle, and a 48x48mm front plate. It is suitable for industrial control panels, automation systems, machinery, and electrical circuit selection applications.

Manufactured by Lovato Electric, the 7GN1256U uses a reliable rotary cam mechanism with a round-shaped contact block design, providing dependable electrical and mechanical performance. The switch is designed for direct changeover between two circuits using a 1-2 switching arrangement without a zero (OFF) position.

Key Features

  • Manufacturer: Lovato Electric
  • Series: 7GN Rotary Cam Switch
  • Product Type: Rotary cam changeover switch
  • Switching Function: Changeover without OFF position
  • Switching Diagram: Scheme 56
  • Number of Poles: 3 poles
  • Rated Thermal Current (Ith): 16A
  • Mounting Type: Front mounting
  • Handle Type: Black operating handle
  • Front Plate Size: 48x48mm
  • Switching Positions: 1-2
  • Number of Elements: 2
  • Front Protection Rating: IP40

Applications

The Lovato 7GN1256U is suitable for industrial machinery, electrical control panels, automation systems, instrumentation equipment, and applications requiring manual selection between two circuits without an OFF position.

Why Choose Lovato 7GN1256U?

The Lovato 7GN1256U provides a compact and dependable switching solution for industrial environments. Its durable rotary cam construction, 3-pole configuration, front mounting design, and compliance with international standards make it ideal for OEM builders, panel manufacturers, and maintenance professionals.

Technical Specifications

Tick the specs you need, then view products that match.

Operation 2 positions
Device Type Cam Switch
Product Series Lovato 7GN
Specification Value Part Number 7GN1256U
Product Type Rotary Cam Changeover Switch
Switching Diagram 56 - Changeover Switch Without 0, 3 Poles
Rated Thermal Current 16A IEC/EN
UL/CSA Thermal Current 15A
Rated Insulation Voltage 690V IEC/EN
UL/CSA Insulation Voltage 600V
Rated Impulse Withstand Voltage 6kV
Rated Operational Voltage 480V AC
Operating Positions 2 (1-2)
Mechanical Rotation Angle 90°
Front Protection IP40
Weight 108g
EAN 3850144004139
HS Code 85365080

Frequently Asked Questions

What is the Lovato 7GN1256U used for?

The Lovato 7GN1256U is used for manual changeover switching between two circuits or operating modes in industrial electrical applications.

How many poles does the Lovato 7GN1256U have?

The Lovato 7GN1256U is a 3-pole rotary cam changeover switch rated at 16A.

Does the Lovato 7GN1256U have an OFF position?

No. The Lovato 7GN1256U uses switching diagram 56, which provides changeover operation without a zero (OFF) position.

What type of mounting does the Lovato 7GN1256U use?

The Lovato 7GN1256U is designed for front mounting with a black handle and 48x48mm front plate.
