7GN2011U - 3P 3POS SWITCH GN2011U 48x48 FRONT MOUNT

7GN2011U – 3P 3POS SWITCH GN2011U 48×48 FRONT MOUNT

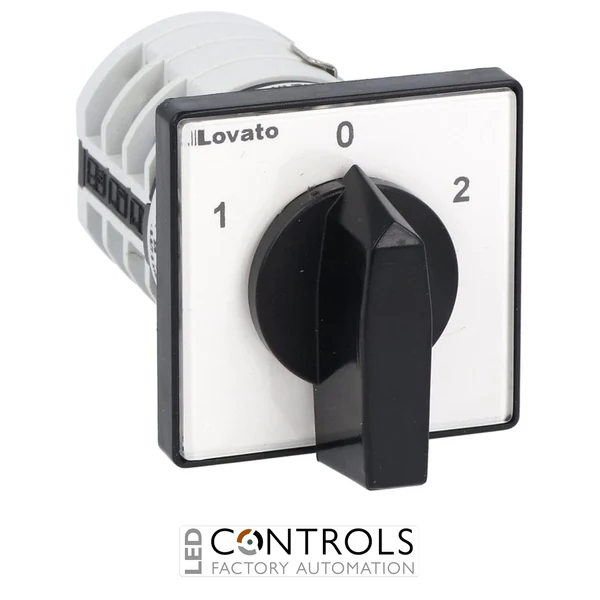

The Lovato 7GN2011U is a motor starting switch engineered for dependable three-phase motor reversing.

SKU: 7GN2011UMPN: 7GN2011U

List Price £41.47 ex VAT

Your Price (ex VAT)

£41.47

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £41.47

Trade pricing is personalised to your account

Manufacturer Lead Time

£41.47

Lovato 7GN2011U Rotary Cam Switch 3 Phase Motor Reversing Switch 20A Front Mount

The Lovato 7GN2011U is a high-quality rotary cam switch from the Lovato GN series, designed specifically for three-phase motor reversing applications in industrial electrical systems. Featuring a 20A thermal current rating, three-pole reversing configuration, and front mounting with a black handle and 48x48mm front plate, this switch provides reliable manual motor direction control for machinery, automation systems, and control panels.

Built for demanding industrial environments, the 7GN2011U cam switch uses Lovato's proven GN series technology with a round-shaped contact block design. It delivers dependable switching performance, long mechanical endurance, and compact installation for OEM machinery, electrical cabinets, and motor control applications.

Lovato 7GN2011U Product Features

Manufacturer: Lovato Electric
Part Number: 7GN2011U
Product Type: Rotary cam switch
Series: 7GN Series
Application: Three-phase motor reversing switch
Switching Diagram: Diagram 11 - 3-phase motor reversing switch
Number of Elements: 3
Switch Positions: Forward - OFF - Reverse
Rated Thermal Current Ith: 20A
Mounting Type: Front mounting
Handle Type: Black rotary handle
Front Plate Size: 48 x 48mm
Rated Insulation Voltage Ui: 690V IEC/EN
Rated Impulse Withstand Voltage Uimp: 6kV
Front Protection Rating: IP40
Mechanical Life: Over 5 million operating cycles

Technical Benefits of the Lovato 7GN2011U

The Lovato 7GN2011U provides a compact and reliable solution for manual motor reversing control. Its three-phase reversing switching arrangement allows operators to select forward, stop, or reverse motor operation using a single rotary device.

Manufactured with high-quality industrial materials and silver alloy contacts, Lovato GN series rotary cam switches are designed for electrical reliability, mechanical durability, and flexible installation across industrial automation and control applications.

Applications

Three-phase motor reversing control
Industrial machinery
Automation equipment
Machine tools
Electrical control panels
OEM motor control systems
Industrial electrical installations

Why Choose Lovato 7GN2011U?

The Lovato 7GN2011U combines dependable motor reversing capability with compact panel installation. Its 20A rating, front mounting design, black operating handle, and 48x48mm front plate make it an ideal choice for engineers, panel builders, and maintenance professionals requiring reliable manual motor control.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type	Cam Switch
Product Series	Lovato 7GN
Operation	3 positions
HS Code	85365080

Frequently Asked Questions

What is the Lovato 7GN2011U?

The Lovato 7GN2011U is a three-phase motor reversing rotary cam switch designed for industrial motor control applications.

What is the current rating of the Lovato 7GN2011U?

The Lovato 7GN2011U has a conventional free air thermal current rating of 20A.

What switching function does the Lovato 7GN2011U provide?

The switch provides a three-phase motor reversing function with forward, OFF, and reverse positions.

How is the Lovato 7GN2011U mounted?

The Lovato 7GN2011U is designed for front mounting with a black handle and 48x48mm front plate.

Device Type	Cam Switch
Product Series	Lovato 7GN
Operation	3 positions
HS Code	85365080
