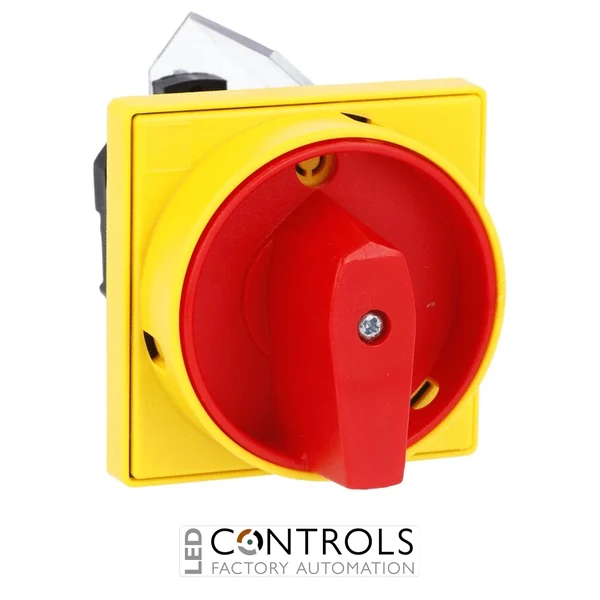

Lovato 7GN2092U25 is a 7GN series rotary cam ON/OFF switch designed for reliable isolation and control. This 4-pole, 20A unit features front mounting (U25) with a red/yellow handle padlockable in 0 and protection covers, plus a 65x65mm front plate. The round-shaped contact block ensures compact integration while Switching Diagram 92 delivers straightforward ON/OFF functionality for multi-pole circuits. Built for dependable performance, the 7GN20 designation offers 6 kV impulse withstand (Uimp) and an IEC conventional free air thermal current Ith of 20 A. The frontal face is IP40 rated, with an operating range of −25 to + 55 °C and storage −40 to + 70 °C. Conforms to IEC/EN/BS 60947-1/-3/-5-1, UL60947-4-1 and CSA C22.2 No. 14, with Sustainability certification.
£42.39
The Lovato 7GN2092U25 is a heavy-duty rotary cam ON/OFF switch from the Lovato 7GN series, designed for reliable manual isolation and switching applications in industrial control panels, machinery, and electrical enclosures. Featuring a 4-pole switching configuration, 20A thermal current rating, and a 2-position 0-1 ON/OFF switching function, this model provides secure operator control with a red/yellow handle, padlockable OFF position, and protective covers.
Designed for front mounting, the Lovato 7GN2092U25 includes a 65x65mm front plate, padlockable handle mechanism, and protection covers for enhanced safety in industrial environments. With IP40 front protection, 6kV impulse withstand voltage, and robust screw terminal connections, it is suitable for machine isolation, motor control, and OEM panel applications.
| Brand | Lovato Electric |
|---|---|
| Part Number | 7GN2092U25 |
| Product Type | Rotary Cam ON/OFF Switch |
| Series | 7GN |
| Switching Function | ON/OFF (0-1) |
| Number of Poles | 4 Pole |
| Rated Thermal Current Ith | 20A |
| Rated Operational Voltage | 480V |
| Rated Insulation Voltage Ui | 690V IEC/EN |
| Rated Impulse Withstand Voltage | 6kV |
| Mounting Type | Front Mounting |
| Front Plate Size | 65 x 65mm |
| Handle Type | Red/Yellow Padlockable Handle |
| Locking Function | Padlockable in Position 0 |
| Protection Rating | IP40 Front |
| Terminal Protection | IP00 |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| EAN | 3850144002463 |
The Lovato 7GN2092U25 is a rotary cam ON/OFF switch designed for manual isolation and switching applications.
This model features a 4-pole switching configuration.
The switch has a conventional thermal current rating of 20A Ith.
Yes. The red/yellow handle can be padlocked in the OFF position for improved operational safety.
The Lovato 7GN2092U25 is supplied with a 65x65mm front plate and protection covers.
