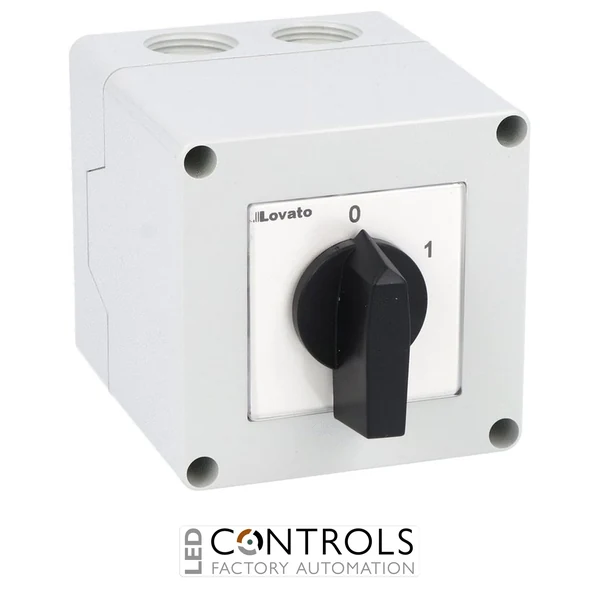

Lovato 7GN2510P is an enclosed rotary cam ON/OFF switch engineered for dependable isolation and control. Part of the 7GN series with a round-shaped contact block, it provides three-pole switching (diagram 10) with a conventional free air thermal current Ith of 25 A. The compact 75×75 mm plastic enclosure with a black handle simplifies installation while protecting the mechanism for routine machine power switching and clear, tactile ON/OFF operation. Designed for demanding environments, the 7GN25 designation delivers IP65 frontal protection and a 6 kV rated impulse withstand voltage. Operating reliably from -25 to + 55 °C and stored from -40 to + 70 °C, this ON/OFF switch aligns with IEC/EN/BS 60947-1, 60947-3 and 60947-5-1. Choose Lovato quality to standardise your control gear with consistent performance, straightforward specification, and a durable black-handle enclosure for confident, repeatable switching.
£62.06
The Lovato 7GN2510P is an enclosed rotary cam ON/OFF switch from the Lovato 7GN series, designed for reliable manual isolation and switching applications in industrial electrical systems. Featuring a 3-pole configuration, 25A conventional thermal current rating, and a 2-position 0-1 ON/OFF switching function, this switch is supplied complete with a durable 75x75mm plastic enclosure and black rotary handle for protected installation.
The Lovato 7GN2510P provides a complete enclosed switching solution for machinery, control panels, and industrial equipment where secure operator access and protection are required. The unit features a plastic enclosure, screw terminal connections, IP-rated front protection, and compliance with IEC/EN industrial switching standards.
| Brand | Lovato Electric |
|---|---|
| Part Number | 7GN2510P |
| Product Type | Enclosed Rotary Cam ON/OFF Switch |
| Series | 7GN |
| Switching Function | ON/OFF (0-1) |
| Switching Diagram | 10 |
| Number of Poles | 3 Pole |
| Number of Positions | 2 |
| Rated Thermal Current Ith | 25A |
| Rated Operational Voltage | 480V |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6kV |
| Mounting Form | Plastic Enclosure with Black Handle |
| Enclosure Size | 75 x 75mm |
| Handle Type | Black Rotary Handle |
| Protection Rating | IP40 Front |
| Connection Type | Screw Terminal |
| Operating Temperature | -25°C to +55°C |
| EAN | 3850144004801 |
The Lovato 7GN2510P is an enclosed rotary cam ON/OFF switch designed for manual switching and electrical isolation applications.
The switch features a 3-pole switching configuration.
The Lovato 7GN2510P has a conventional thermal current rating of 25A Ith.
Yes. This model includes a plastic enclosure measuring 75x75mm with a black rotary handle.
Yes. The switch provides a maintained 0-1 ON/OFF switching arrangement.
{ "@context": "https://schema.org", "@type": "Product", "name": "Lovato 7GN2510P 3 Pole 2 Position Rotary Cam ON/OFF Switch 25A Enclosed", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "sku": "7GN2510P", "mpn": "7GN2510P", "description": "Lovato 7GN2510P enclosed rotary cam ON/OFF switch with 3 poles, 25A Ith rating, plastic enclosure 75x75mm and black rotary handle.", "category": "Industrial Control Switches", "additionalProperty": [ { "@type": "PropertyValue", "name": "Poles", "value": "3" }, { "@type": "PropertyValue", "name": "Current Rating", "value": "25A Ith" }, { "@type": "PropertyValue", "name": "Positions", "value": "0-1" }, { "@type": "PropertyValue", "name": "Enclosure", "value": "Plastic 75x75mm" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What type of switch is the Lovato 7GN2510P?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2510P is an enclosed rotary cam ON/OFF switch designed for manual switching and electrical isolation applications." } }, { "@type": "Question", "name": "How many poles does the Lovato 7GN2510P have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2510P features a 3-pole switching configuration." } }, { "@type": "Question", "name": "What is the current rating of the Lovato 7GN2510P?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2510P has a conventional thermal current rating of 25A Ith." } } ] }| Phase | Three Phase |
|---|---|
| HS Code | 85365080 |
