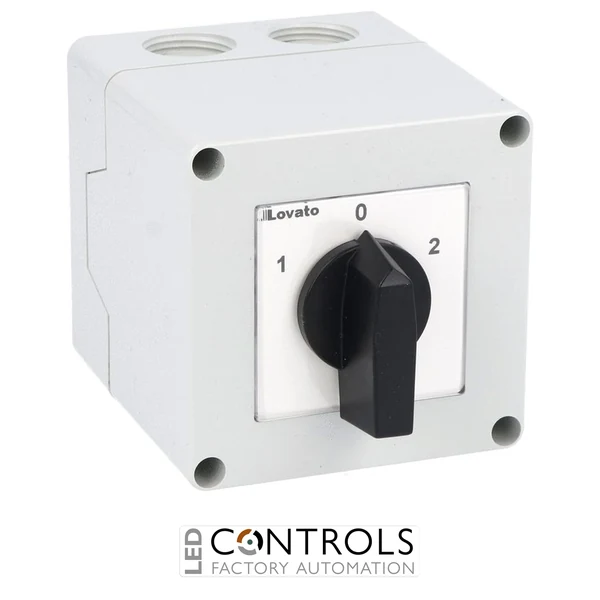

Lovato’s 7GN2553P enclosed rotary cam changeover switch delivers dependable 3-pole switching at 25 A within a compact 75×75 mm plastic enclosure. The black rotary handle provides positive operation, while the IP65 frontal protection helps resist dust and water jets at the operator interface. Designed around the 7GN round-shaped contact block series, this unit is ideal for reliable changeover duties in demanding industrial control environments. With a 6 kV rated impulse withstand voltage and an operating range of -25 to + 55 °C, the 7GN25 platform offers robust insulation and dependable performance. Switching diagram 53 supports 3-pole changeover for 2-speed motor starting with separate windings. Mounting form P confirms the plastic enclosure with black handle. Conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1 for assured compliance.
£81.98
The Lovato 7GN2553P is an enclosed rotary cam switch from the Lovato Electric 7GN series, designed for dependable manual switching and motor control applications. This 3-pole changeover switch is rated at 25A and is supplied in a durable 75x75mm plastic enclosure with a black operating handle, providing a compact and reliable solution for industrial electrical systems.
Featuring switching diagram 53, the Lovato 7GN2553P is designed for 2-speed motor starting applications with separate windings. It offers a robust construction, high insulation capability, and compliance with IEC/EN standards, making it suitable for machinery, automation systems, and control panels.
| Brand | Lovato Electric |
|---|---|
| Part Number | 7GN2553P |
| Product Type | Enclosed Rotary Cam Switch |
| Series | 7GN |
| Switching Diagram | 53 - 3 Pole Changeover Switch for 2 Speed Motor Starting with Separate Windings |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Current Rating Ith | 25A IEC/EN |
| Rated Insulation Voltage Ui | 690V IEC/EN |
| Rated Operational Voltage | 480V |
| Mounting Type | Plastic enclosure mounting |
| Enclosure Material | Plastic |
| Enclosure Size | 75x75mm |
| Handle Colour | Black |
| Mechanical Life | 5 x 10⁶ switching cycles |
| Weight | 307g |
The Lovato 7GN2553P rotary cam switch is ideal for:
The Lovato 7GN2553P combines reliable switching performance with a protected enclosure design, making it a practical choice for industrial environments. Its 25A rating, three-pole configuration, and dedicated two-speed motor switching function provide dependable control for demanding electrical installations.
The Lovato 7GN2553P is an enclosed rotary cam switch with a 3-pole changeover configuration.
The switch has a conventional free air thermal current rating of 25A according to IEC/EN specifications.
Switching diagram 53 is designed for two-speed motor starting applications using separate windings.
Yes, the 7GN2553P is supplied with a plastic enclosure measuring 75x75mm and a black operating handle.
{ "@context": "https://schema.org", "@type": "Product", "name": "Lovato 7GN2553P Rotary Cam Switch", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "sku": "7GN2553P", "description": "Lovato 7GN2553P enclosed rotary cam switch, 3 pole 25A changeover switch in plastic enclosure with black handle.", "category": "Electrical Switches" } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What type of switch is the Lovato 7GN2553P?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2553P is an enclosed rotary cam switch with a 3-pole changeover configuration." } }, { "@type": "Question", "name": "What is the current rating of the Lovato 7GN2553P?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2553P has a 25A conventional free air thermal current rating." } }, { "@type": "Question", "name": "What application is switching diagram 53 designed for?", "acceptedAnswer": { "@type": "Answer", "text": "Switching diagram 53 is designed for two-speed motor starting applications with separate windings." } } ] }| Phase | Three Phase |
|---|---|
| HS Code | 85365080 |
