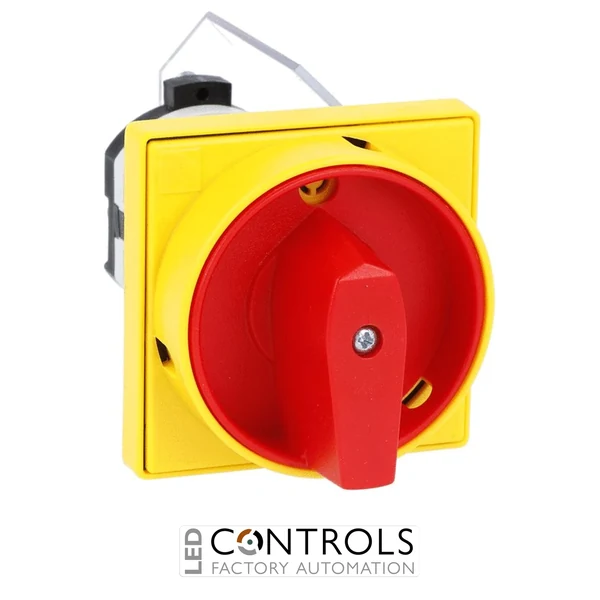

Lovato’s 7GN2592U25 rotary cam ON/OFF switch delivers reliable four-pole isolation at 25 A for industrial panels. Built on the 7GN round-shaped contact block, it features U25 front mounting with a red/yellow handle that is padlockable in 0 and supplied with protection covers. A compact 65 x 65 mm front plate supports neat installations, while the intuitive rotary action provides clear, positive switching for straightforward control and safe equipment shut-off. Engineered for durability, the 7GN25 designation offers 6 kV impulse withstand (Uimp) and IP40 frontal protection, with operating temperatures from -25 to + 55 °C (-40 to + 70 °C storage). It meets IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14, helping specifiers standardise on a proven solution for clear ON/OFF control, isolation, and maintenance lockout across a wide range of control applications.
£57.62
The Lovato 7GN2592U25 is a professional rotary cam switch from the Lovato Electric 7GN series, designed for reliable ON/OFF switching and electrical isolation applications in industrial control panels, machinery, and automation systems. This 4-pole 25A ON/OFF switch features front mounting with a red/yellow padlockable handle, protection covers, and a 65x65mm front plate, providing a safe and practical solution for industrial installations.
Featuring switching diagram 92, the Lovato 7GN2592U25 provides a two-position ON/OFF function with four poles. The switch is rated at 25A IEC/EN conventional free air thermal current, with a 690V rated insulation voltage and 6kV impulse withstand voltage, making it suitable for dependable circuit isolation and manual control applications.
| Brand | Lovato Electric |
|---|---|
| Part Number | 7GN2592U25 |
| Product Type | Rotary Cam Switch |
| Series | 7GN |
| Switching Diagram | 92 - ON/OFF Switch 4 Poles |
| Number of Poles | 4 |
| Number of Positions | 2 (0-1) |
| Thermal Current Ith | 25A IEC/EN |
| UL/CSA Thermal Current | 25A |
| Rated Insulation Voltage Ui | 690V IEC/EN |
| UL/CSA Insulation Voltage | 600V |
| Rated Impulse Withstand Voltage Uimp | 6kV |
| Mounting Type | Front mounting |
| Handle Colour | Red/Yellow |
| Handle Locking | Padlockable in OFF position |
| Protection Covers | Included |
| Front Plate Size | 65x65mm |
| Front Protection | IP40 |
| Weight | 194g |
The Lovato 7GN2592U25 rotary cam switch is suitable for:
The Lovato 7GN2592U25 combines dependable switching performance with enhanced operator safety features. Its padlockable red/yellow handle, protection covers, four-pole configuration, and 25A current rating make it an ideal solution for industrial applications requiring secure manual isolation and reliable circuit control.
The Lovato 7GN2592U25 is a rotary cam ON/OFF switch with a 4-pole configuration and front mounting design.
The Lovato 7GN2592U25 has a conventional free air thermal current rating of 25A according to IEC/EN standards.
Yes. The red/yellow handle can be padlocked in the OFF position for improved safety during maintenance and isolation procedures.
The switch is designed for front mounting and includes protection covers and a 65x65mm front plate.
{ "@context": "https://schema.org", "@type": "Product", "name": "Lovato 7GN2592U25 Rotary Cam Switch", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "sku": "7GN2592U25", "description": "Lovato 7GN2592U25 rotary cam switch, 4 pole 25A ON/OFF switch with red/yellow padlockable handle, protection covers and 65x65mm front plate.", "category": "Electrical Switches" } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What type of switch is the Lovato 7GN2592U25?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2592U25 is a rotary cam ON/OFF switch with a 4-pole configuration and front mounting design." } }, { "@type": "Question", "name": "What is the current rating of the Lovato 7GN2592U25?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 7GN2592U25 has a 25A conventional free air thermal current rating." } }, { "@type": "Question", "name": "Can the Lovato 7GN2592U25 handle be locked?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the red/yellow handle is padlockable in the OFF position." } } ] }| Phase | Three Phase |
|---|---|
| HS Code | 85365080 |
