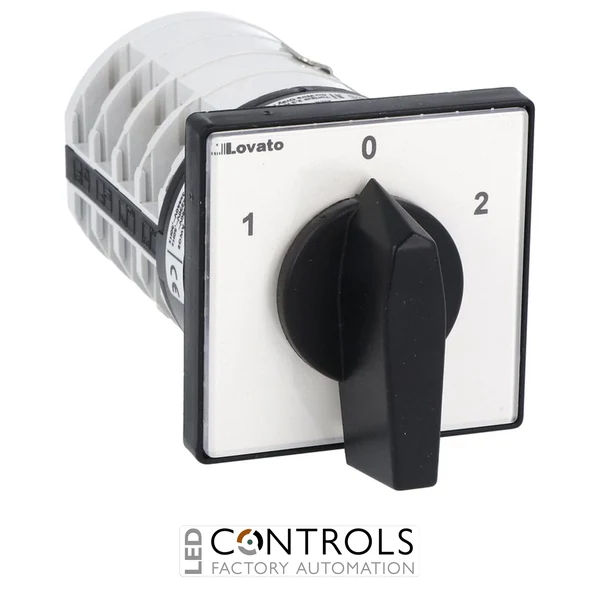

Lovato’s 7GN4013U rotary cam switch is a robust motor starting switch engineered for Dahlander 1-0-2 control. Part of the 7GN series with a round-shaped contact block, it offers front mounting with a black handle and a 65X65mm front plate. Rated Ith 40 A and Uimp 6 kV, this unit delivers reliable two-speed motor selection in industrial panels. Built to perform in demanding environments, the 7GN4013U provides IP40 frontal protection and operates from -25 to + 55 °C (storage -40 to + 70 °C). With product type designation 7GN40, it conforms to IEC/EN/BS 60947-1, 60947-3 and 60947-5-1, plus UL60947-4-1 and CSA C22.2 n° 14. A dependable choice for OEMs and panel builders needing precise, front-mounted Dahlander motor control.
£146.00
The Lovato 7GN4013U is a 7GN series rotary cam switch designed for Dahlander motor control applications. This 40A pole-changing motor switch provides reliable manual switching for two-speed three-phase motors and features a front mounting configuration with a black handle and 65x65mm front plate. It is suitable for industrial machinery, motor control panels, and automation systems requiring dependable speed control switching.
The 7GN4013U uses switching diagram 13 with a 1-0-2 operating arrangement and four switching elements. Designed with a round-shaped contact block, this cam switch offers robust electrical performance with IEC/EN and UL/CSA compliance for industrial environments.
| Specification | Value |
|---|---|
| Product Type | Rotary Cam Switch |
| Manufacturer | LOVATO Electric |
| Part Number | 7GN4013U |
| Series | 7GN |
| Switching Function | Dahlander Motor Control Switch |
| Switching Diagram | 13 |
| Operating Positions | 1-0-2 |
| Number of Elements | 4 |
| Rated Thermal Current Ith | 40A IEC/EN |
| UL/CSA Thermal Current | 50A |
| Rated Insulation Voltage Ui | 690V IEC/EN, 600V UL/CSA |
| Rated Impulse Withstand Voltage | 6kV |
| Rated Operational Voltage | 480V |
| Mounting Type | Front Mounting |
| Handle Colour | Black |
| Front Plate Size | 65x65mm |
| Weight | 366g |
The Lovato 7GN4013U provides a compact and reliable solution for manual two-speed motor control. Its durable construction, 40A current rating, front panel mounting design, and compliance with international standards make it suitable for demanding industrial applications where safe and accurate motor switching is required.
The Lovato 7GN4013U is used for manual control of Dahlander two-speed motors, allowing operators to switch between different motor speed configurations.
The Lovato 7GN4013U has a conventional free air thermal current rating of 40A according to IEC/EN specifications.
The Lovato 7GN4013U is designed for front mounting and includes a black handle with a 65x65mm front plate.
The Lovato 7GN4013U is designed for Dahlander motor control applications, providing switching between two motor speed configurations.
