Lovato Electric 8LM2TB1134 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £9.66.£6.76Current price is: £6.76.

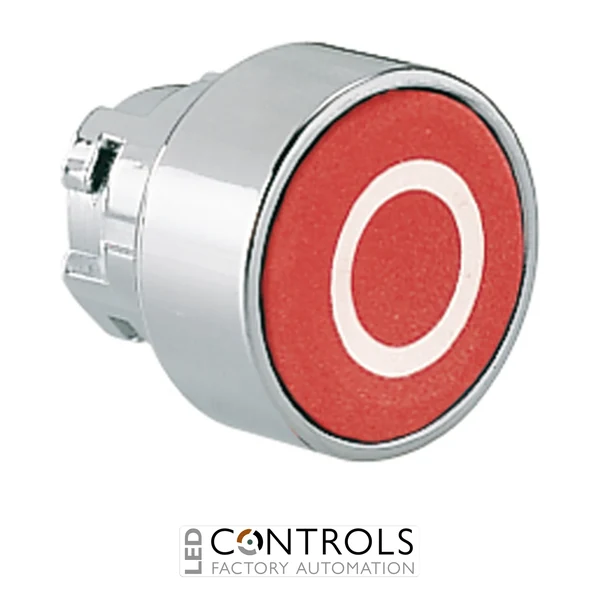

The Lovato 8LM2TB1134 is a professional 22mm spring return pushbutton actuator designed for reliable industrial control and signalling applications. Part of the Lovato 8LM metal series, this flush red pushbutton actuator with a STOP symbol provides a durable and clearly identifiable solution for machine control panels, automation systems and industrial operator interfaces.
Manufactured with a robust aluminium and zinc alloy construction, the 8LM2TB1134 delivers dependable mechanical performance with a compact design suitable for modern electrical control equipment. Its spring return operation provides momentary switching action, making it ideal for stop commands, machine controls and manual operation functions in industrial environments.
With an Ø22mm mounting diameter, IP65 front protection and a red flush actuator featuring a STOP symbol, the Lovato 8LM2TB1134 is engineered for dependable operation in demanding applications. It can be combined with compatible Lovato contact blocks and accessories to create complete industrial pushbutton control assemblies.
Industrial pushbutton actuators provide operators with a simple and reliable method of controlling machinery, automation systems and electrical equipment. The Lovato 8LM2TB1134 delivers consistent momentary operation and is designed for integration into professional control stations.
The robust construction and IP65 protection make this actuator suitable for factory environments where durability, visibility and dependable operator interaction are essential. Combined with compatible Lovato switching elements, it provides a flexible solution for industrial stop and command systems.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 33 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975040331 |
| HS Code | 85365080 |
| Product designation | Pushbutton actuators, spring return, with symbol - Flush |
| Product type designation | 8LM2TB1134 |
| Colour | Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | 1, 2, 3R, 4, 4X, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TB1134 is a spring return pushbutton actuator used for stop commands, industrial machine controls, automation panels and operator command stations.
The 8LM2TB1134 provides spring return momentary operation, meaning the actuator returns to its original position after being released.
This actuator is designed for standard 22mm panel mounting applications.
The actuator features an IP65 protection rating on the front side, providing resistance against dust and water ingress.
The actuator is supplied with a red flush button with STOP symbol designed for clear identification in industrial control applications.
Lovato Electric pushbutton actuators are widely used in industrial automation and control systems where reliable operator interaction, durability and long service life are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB1134 Pushbutton Actuator", "sku": "8LM2TB1134", "mpn": "8LM2TB1134", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Actuators", "description": "Lovato 8LM2TB1134 spring return pushbutton actuator, 22mm metal series flush red stop button with STOP symbol designed for industrial control panels and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator type", "value": "Spring return" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Colour", "value": "Red" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1,000,000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB1134 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB1134 is a spring return pushbutton actuator used for stop commands, industrial machine controls, automation panels and operator command stations." } }, { "@type": "Question", "name": "What type of operation does this pushbutton provide?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TB1134 provides spring return momentary operation, meaning the actuator returns to its original position after being released." } }, { "@type": "Question", "name": "What mounting size is required for the Lovato 8LM2TB1134?", "acceptedAnswer": { "@type": "Answer", "text": "This actuator is designed for standard 22mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does this pushbutton actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features an IP65 protection rating on the front side, providing resistance against dust and water ingress." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TB1134 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is supplied with a red flush button with STOP symbol designed for clear identification in industrial control applications." } } ] }
