Lovato Electric 8LM2TB6143 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £16.84.£11.79Current price is: £11.79.

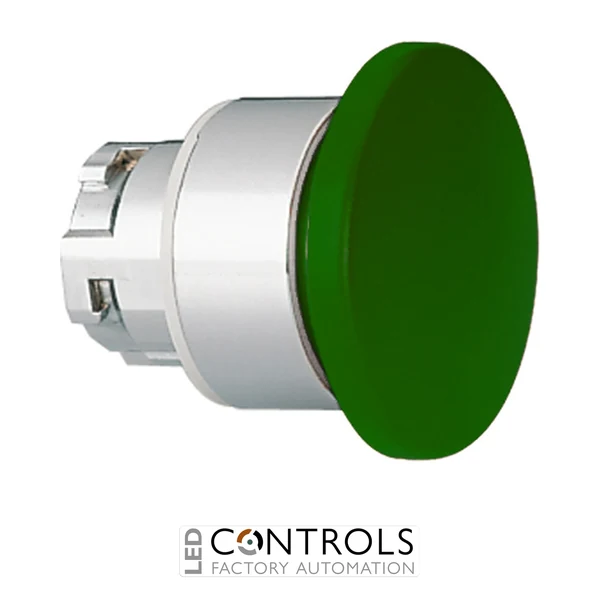

The Lovato 8LM2TB6143 is a high-quality mushroom head pushbutton actuator designed for reliable industrial control applications where clear operator interaction and durable switching performance are required. Part of the Lovato 8LM series metal pushbutton range, this actuator provides a robust solution for machine control panels, automation systems and industrial electrical equipment.
Featuring a 40 mm green mushroom head design and spring return operation, the 8LM2TB6143 allows operators to quickly identify and operate control functions. Its metal construction provides excellent mechanical strength, while the compact 22 mm mounting format enables straightforward integration into standard industrial control stations.
The Lovato 8LM2TB6143 is engineered for demanding industrial environments, offering high durability, excellent protection ratings and compatibility with Lovato modular pushbutton assemblies. It is ideal for applications requiring dependable manual control, machine operation interfaces and industrial automation equipment.
Industrial pushbutton actuators provide a simple and dependable method for operators to interact with machinery and electrical control systems. The Lovato 8LM2TB6143 combines a highly visible mushroom-style actuator with robust mechanical construction to ensure reliable operation in demanding environments.
The spring return mechanism allows the actuator to automatically return to its original position after operation, making it suitable for momentary control functions in manufacturing machinery, control panels and industrial automation systems.
| IP Rating | IP66 |
|---|---|
| Weight [g] | 37 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 170X073X045 |
| Volume [cm³] | 55.845 |
| Bar code [EAN13] | 8013975061060 |
| HS Code | 85365080 |
| Product designation | Mushroom head pushbutton actuators - SPRING RETURN. Ø40mm/1.6” |
| Product type designation | 8LM2TB614 |
| Colour | Green |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP66 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Latch actuators | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TB6143 is a mushroom head pushbutton actuator used for manual operator control in industrial machinery, automation systems and electrical control panels.
The actuator features a green mushroom head designed for clear identification during machine operation.
The 8LM2TB6143 uses a spring return mechanism, meaning the actuator returns to its original position after being released.
The actuator is designed for a standard 22 mm panel mounting cut-out.
The actuator provides an IP66 protection rating, making it suitable for demanding industrial environments.
Lovato Electric pushbutton components are widely used by automation engineers, machine builders and electrical professionals requiring reliable operator control solutions with robust industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB6143 Mushroom Head Pushbutton Actuator 40mm Green", "sku": "8LM2TB6143", "mpn": "8LM2TB6143", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Actuators", "description": "Lovato 8LM2TB6143 mushroom head pushbutton actuator with 40mm green spring return actuator head for 22mm industrial control panel mounting applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator colour", "value": "Green" }, { "@type": "PropertyValue", "name": "Head diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operating type", "value": "Spring return" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP66" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB6143 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6143 is a mushroom head pushbutton actuator used for manual operator control in industrial machinery, automation systems and electrical control panels." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TB6143 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a green mushroom head designed for clear identification during machine operation." } }, { "@type": "Question", "name": "What type of operation does this pushbutton actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TB6143 uses a spring return mechanism, meaning the actuator returns to its original position after being released." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for a standard 22 mm panel mounting cut-out." } }, { "@type": "Question", "name": "What protection rating does the Lovato 8LM2TB6143 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP66 protection rating, making it suitable for demanding industrial environments." } } ] }
