Lovato Electric 8LM2TB6146 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £16.84.£11.79Current price is: £11.79.

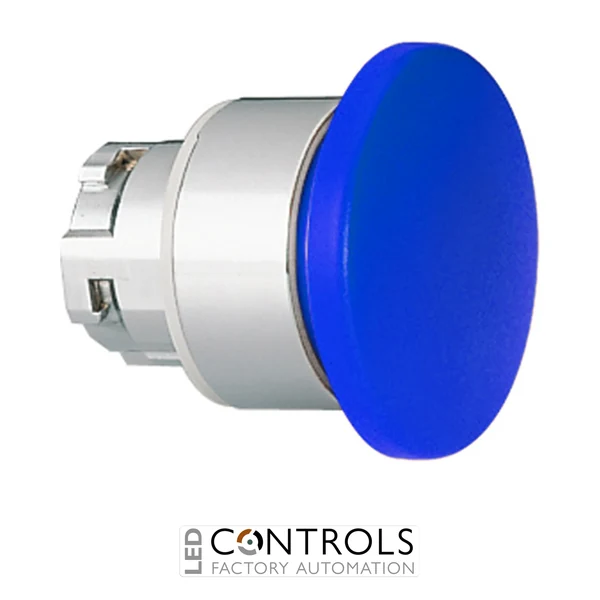

The Lovato 8LM2TB6146 is a durable mushroom head pushbutton actuator designed for reliable manual control in industrial automation systems, machine control panels and electrical equipment. Part of the Lovato 8LM metal pushbutton series, this actuator provides a robust and highly visible solution for operator interfaces requiring dependable switching control.
Featuring a 40 mm blue mushroom head and spring return operation, the 8LM2TB6146 delivers clear operator identification and reliable momentary control. Its metal construction provides excellent mechanical strength, while the standard 22 mm mounting format enables straightforward installation into industrial control panels and operator stations.
The Lovato 8LM2TB6146 is engineered for demanding industrial environments with an IP66 protection rating, high mechanical durability and compatibility with Lovato modular pushbutton assemblies. It is suitable for machine builders, OEM manufacturers and automation professionals requiring dependable industrial control components.
Industrial pushbutton actuators provide a simple and dependable interface between operators and machinery. The Lovato 8LM2TB6146 combines a highly visible mushroom-style actuator with durable metal construction to ensure reliable performance in demanding industrial control environments.
The spring return design allows the actuator to automatically return to its original position after release, making it suitable for momentary commands in manufacturing equipment, automation systems and electrical control applications.
| IP Rating | IP66 |
|---|---|
| Weight [g] | 37 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 170X073X045 |
| Volume [cm³] | 55.845 |
| Bar code [EAN13] | 8013975067895 |
| HS Code | 85365080 |
| Product designation | Mushroom head pushbutton actuators - SPRING RETURN. Ø40mm/1.6” |
| Product type designation | 8LM2TB614 |
| Colour | Blue |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP66 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Latch actuators | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TB6146 is a mushroom head pushbutton actuator used for manual operator control in industrial machinery, automation systems and electrical control panels.
The actuator features a blue mushroom head designed for clear operator identification.
The 8LM2TB6146 uses a spring return mechanism, allowing the actuator to return to its original position after release.
The actuator is designed for a standard 22 mm panel mounting cut-out.
The actuator provides an IP66 protection rating for reliable operation in industrial environments.
Lovato Electric pushbutton components are widely used by automation engineers, machine builders and electrical professionals requiring durable operator control solutions with dependable industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB6146 Mushroom Head Pushbutton Actuator 40mm Blue", "sku": "8LM2TB6146", "mpn": "8LM2TB6146", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Actuators", "description": "Lovato 8LM2TB6146 mushroom head pushbutton actuator with 40mm blue spring return actuator head for 22mm industrial control panel mounting applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator colour", "value": "Blue" }, { "@type": "PropertyValue", "name": "Head diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operating type", "value": "Spring return" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP66" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB6146 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6146 is a mushroom head pushbutton actuator used for manual operator control in industrial machinery, automation systems and electrical control panels." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TB6146 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a blue mushroom head designed for clear operator identification." } }, { "@type": "Question", "name": "What type of operation does this pushbutton actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TB6146 uses a spring return mechanism, allowing the actuator to return to its original position after release." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for a standard 22 mm panel mounting cut-out." } }, { "@type": "Question", "name": "What protection rating does the Lovato 8LM2TB6146 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP66 protection rating for reliable operation in industrial environments." } } ] }
