Lovato Electric 8LM2TB6244 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £29.37.£20.56Current price is: £20.56.

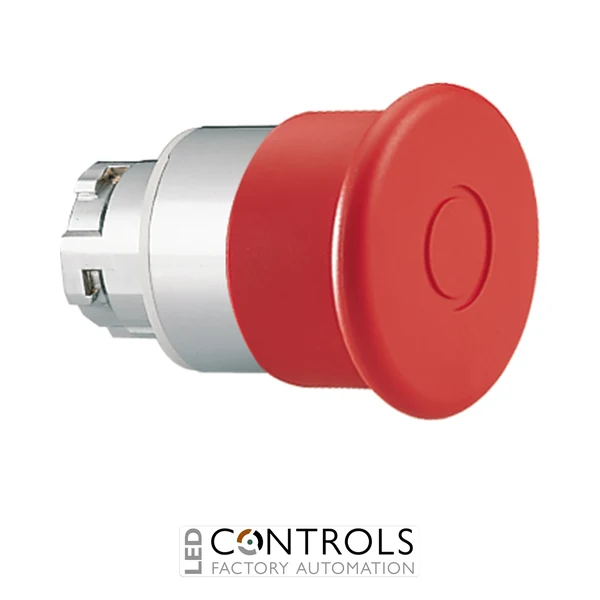

The Lovato 8LM2TB6244 is a robust mushroom head pushbutton actuator designed for reliable industrial stopping applications, machine control panels and automation systems. Part of the Lovato 8LM metal pushbutton series, this actuator features a secure latch push-pull mechanism with pull-to-release operation, providing dependable maintained control for industrial equipment.
Featuring a 40 mm red mushroom head, the 8LM2TB6244 provides excellent operator visibility and quick identification during machine operation. Its durable aluminium and zinc alloy construction ensures mechanical strength, while the standard 22 mm mounting format enables straightforward installation into industrial control panels and operator stations.
The Lovato 8LM2TB6244 is engineered for demanding industrial environments, offering IP66 protection, high mechanical durability and compatibility with Lovato modular pushbutton assemblies. It is suitable for machine builders, OEM manufacturers and automation professionals requiring dependable stopping control components.
Industrial mushroom head pushbuttons provide operators with a highly visible and dependable method of controlling machinery. The Lovato 8LM2TB6244 combines a large actuator head with a locking push-pull mechanism to provide secure stopping control in industrial environments.
The latch design maintains the actuator position until manually released, making it suitable for applications where a controlled reset action is required. Its robust construction and IP66 protection rating help ensure reliable operation in demanding industrial conditions.
| IP Rating | IP66 |
|---|---|
| Weight [g] | 105 |
| Qty. per package | 2 |
| Multiple qty. of packs per order | 2 |
| Package dimensions [mm] | 060X045X070 |
| Volume [cm³] | 94.5 |
| Bar code [EAN13] | 8013975051276 |
| HS Code | 85365080 |
| Product designation | Mushroom head pushbutton actuators - LATCH, PULL TO RELEASE. Ø40mm/1.6” For normal stopping |
| Product type designation | 8LM2TB624 |
| Colour | Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP66 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Latch actuators | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TB6244 is a mushroom head pushbutton actuator designed for normal stopping applications in industrial machinery and control systems.
The actuator features a red 40 mm mushroom head for clear operator identification.
The actuator uses a pull-to-release latch mechanism, requiring the operator to pull the button to return it to its original position.
The actuator is designed for a standard 22 mm panel mounting cut-out.
The actuator provides an IP66 protection rating for reliable operation in industrial environments.
Lovato Electric pushbutton components are widely used by automation engineers, machine builders and electrical professionals requiring durable operator control solutions with dependable industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB6244 Mushroom Head Pushbutton Actuator 40mm Red", "sku": "8LM2TB6244", "mpn": "8LM2TB6244", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Actuators", "description": "Lovato 8LM2TB6244 red 40mm mushroom head pushbutton actuator with latch push-pull pull-to-release operation for industrial stopping applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator colour", "value": "Red" }, { "@type": "PropertyValue", "name": "Head diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operating type", "value": "Latch pull-to-release" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP66" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB6244 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6244 is a mushroom head pushbutton actuator designed for normal stopping applications in industrial machinery and control systems." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TB6244 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a red 40 mm mushroom head for clear operator identification." } }, { "@type": "Question", "name": "How does the Lovato 8LM2TB6244 reset?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses a pull-to-release latch mechanism, requiring the operator to pull the button to return it to its original position." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for a standard 22 mm panel mounting cut-out." } }, { "@type": "Question", "name": "What protection rating does the Lovato 8LM2TB6244 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP66 protection rating for reliable operation in industrial environments." } } ] }
